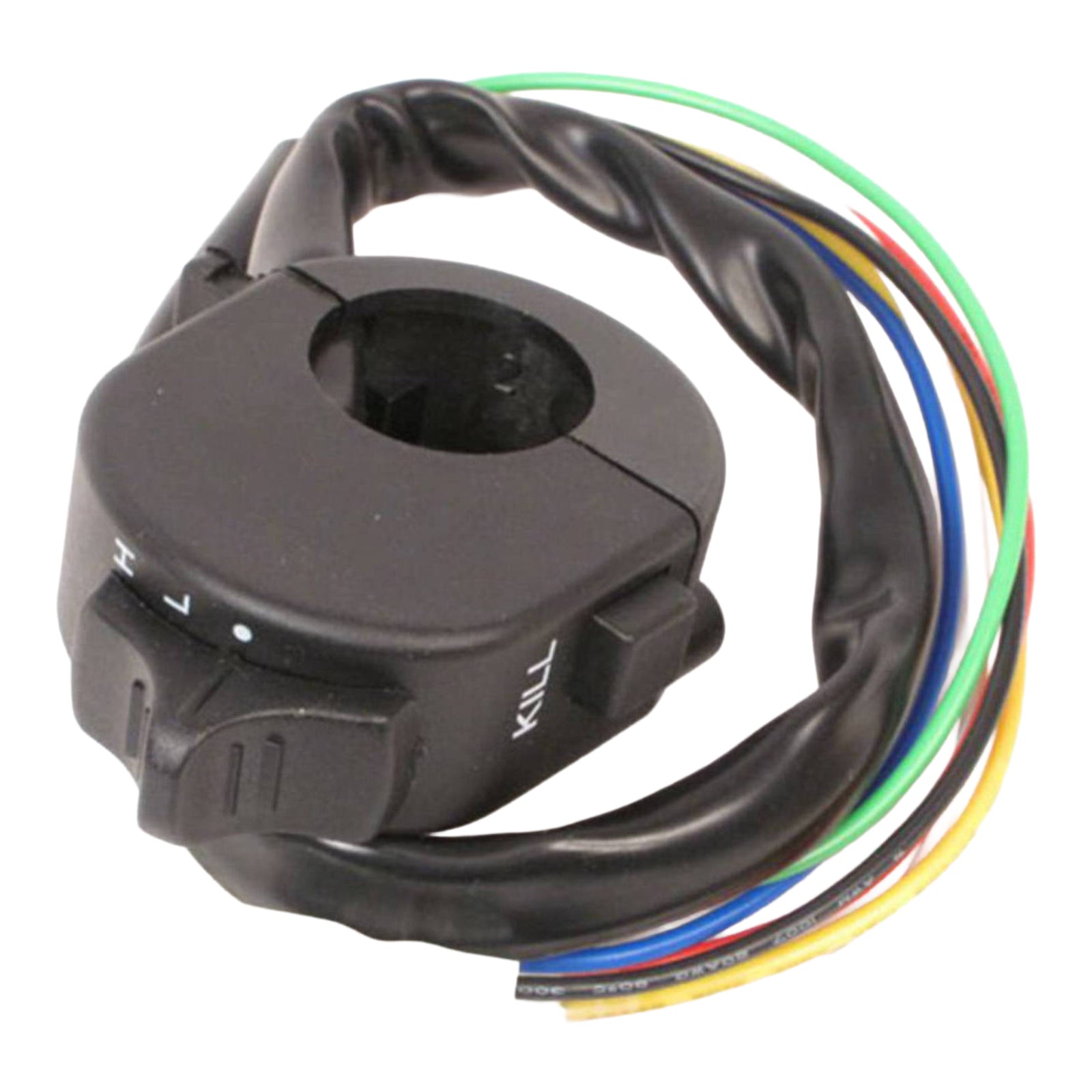

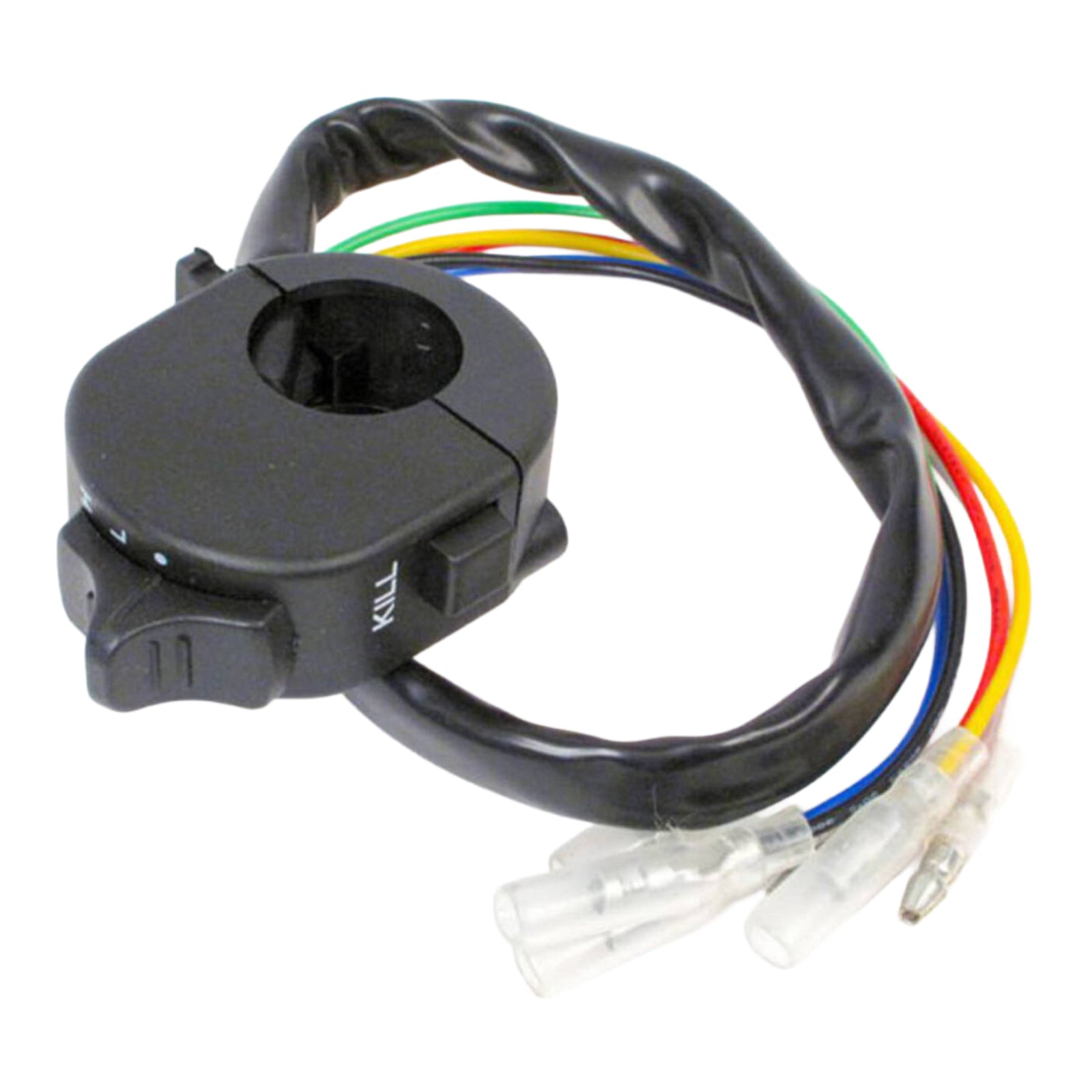

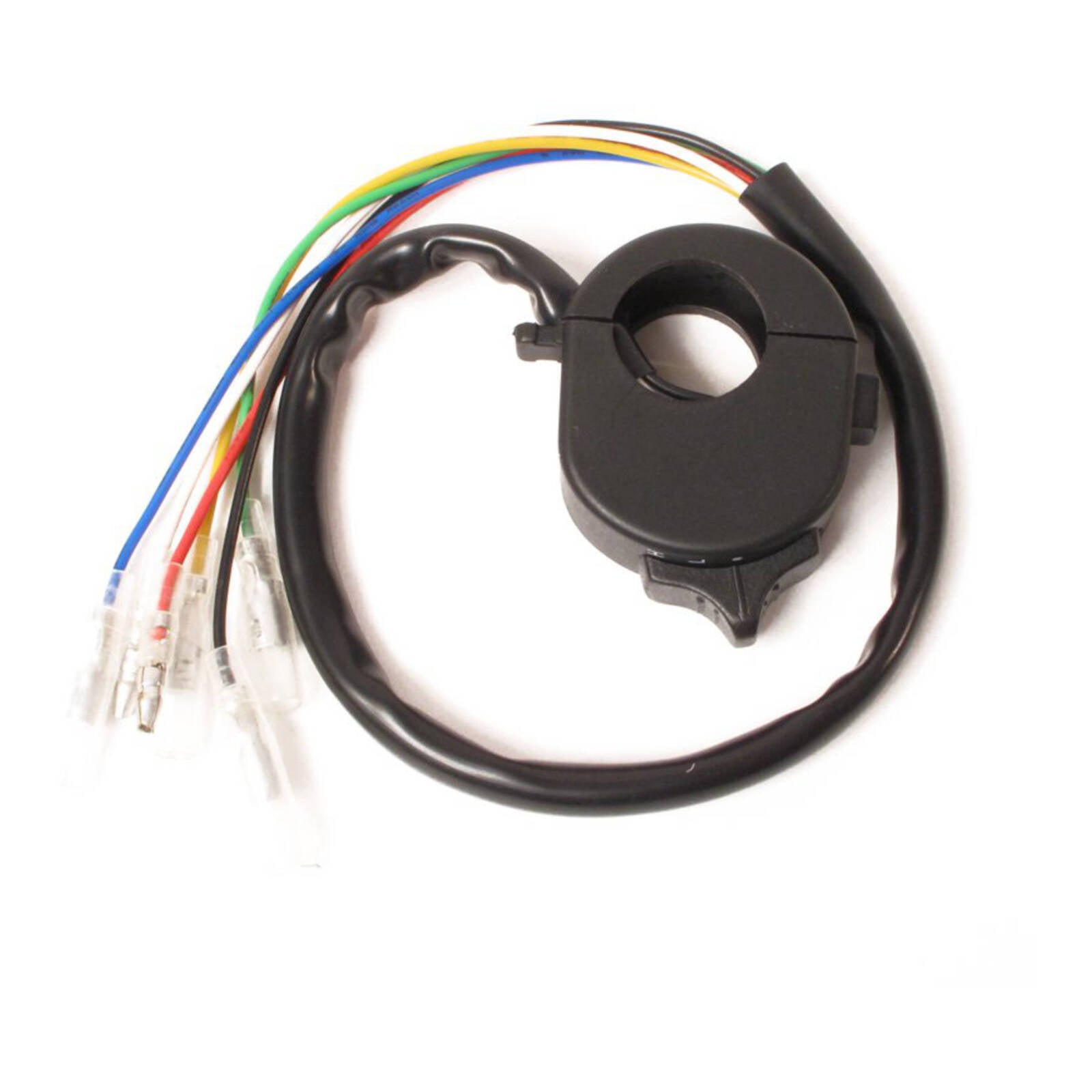

WMP SWITCH BLOCK HEADLIGHT ON-OFF/HI-LO (20.7mm)

Boasting a sleek black and slim design, the Whites Headlight Switch Block is a multi-purpose handlebar switch with a High, Low and Off setting for your headlight and a kill switch. The switch block is pre-wired with an 18" length and bullet terminals for a quick and easy installation and is compatible with 7/8" handlebars. The block is only 20mm wide and 42mm high making it the perfect replacement for that bulky OEM block on your daily commuter or one of the custom machines.

Features:

• Pre-wired 18" wire with bullet terminals.
• Compatible with 7/8" handlebars.
• Full wrap around design.
• Three stage headlight switch high/low/off.
• Includes kill switch.
• Voltage Range - 11v - 15v
• Max Amps - 2.5 amps
• Material: ABS Plastic
• Width: 20mm
• Height: 42mm

Wiring Configuration:

• Red: Positive
• Black: Earth
• White: Kill Switch
• Green: Low Beam
• Yellow: High Beam
• Blue: Parking Light
