SKU:
RMS010107593
New arrival
GENERATOR STATOR KAWA KRF 750 TERYX 2013
Regular price
$31999
Unit price
Tax included
Shipping calculated at checkout.
GENERATOR STATOR KAWA KRF 750 TERYX 2013 is backordered and will ship as soon as it is back in stock.
GENERATOR STATOR KAWA KRF 750 TERYX 2013 is backordered and will ship as soon as it is back in stock.
Navigation Redefined
The ultimate navigation device for off-road riders.
Description
Description

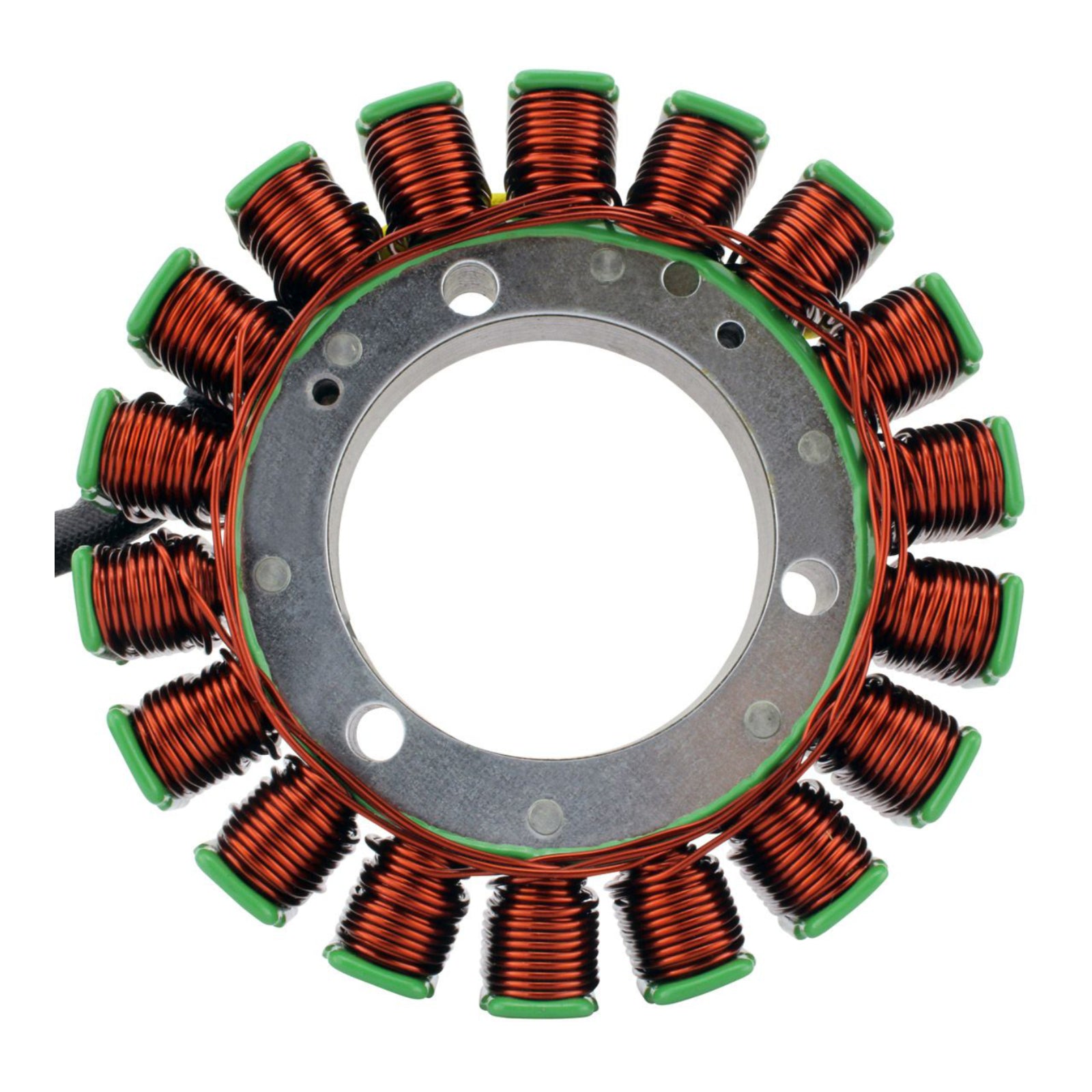

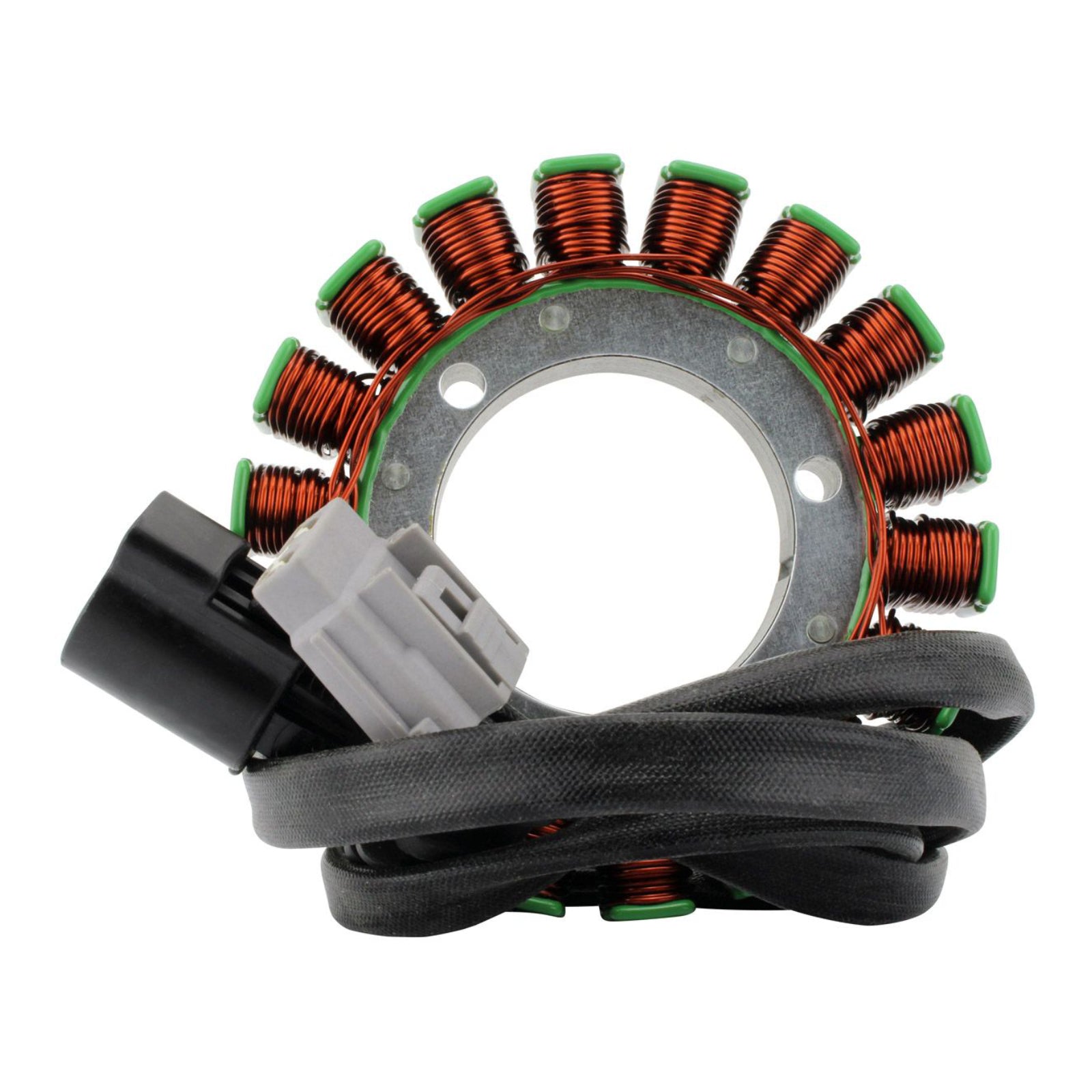

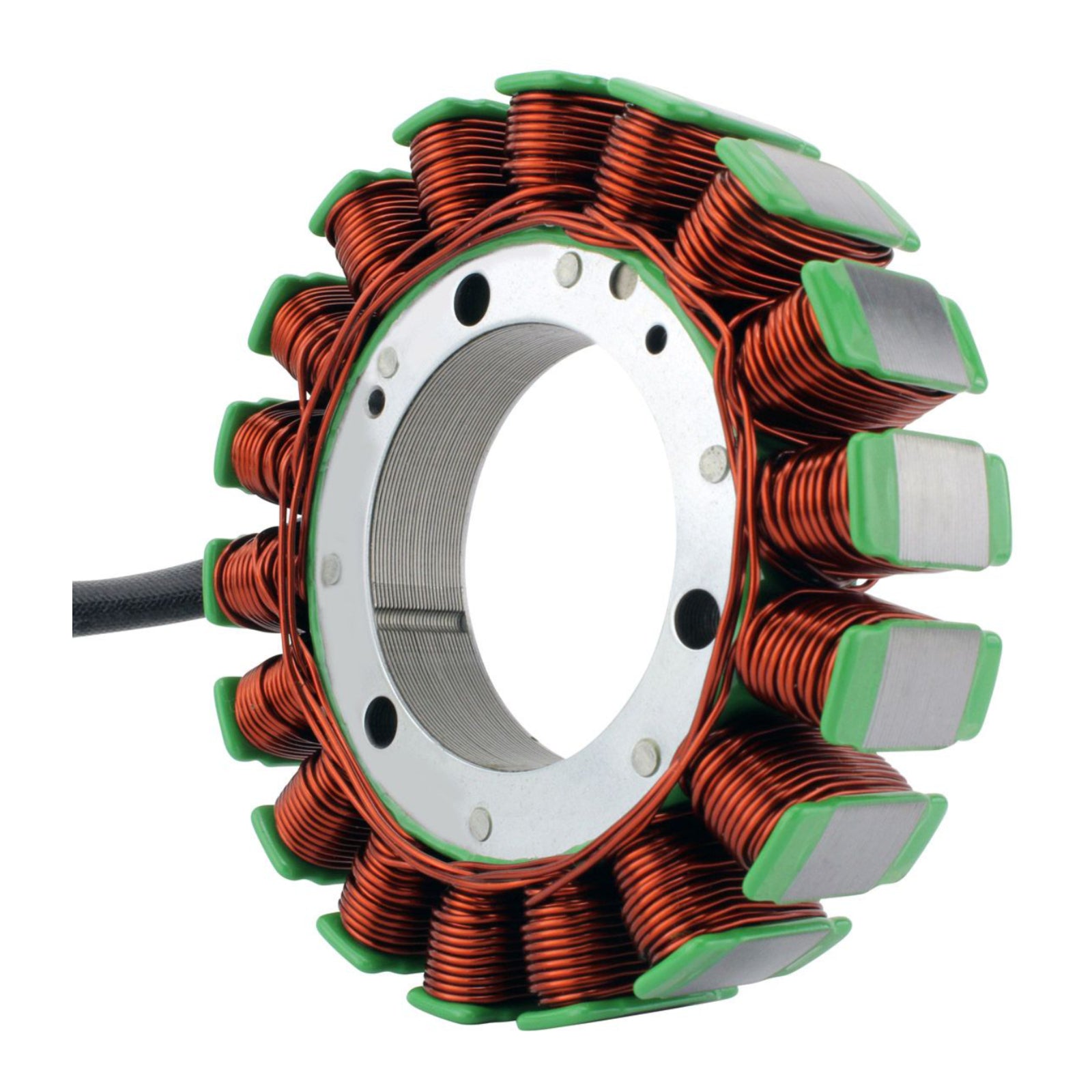

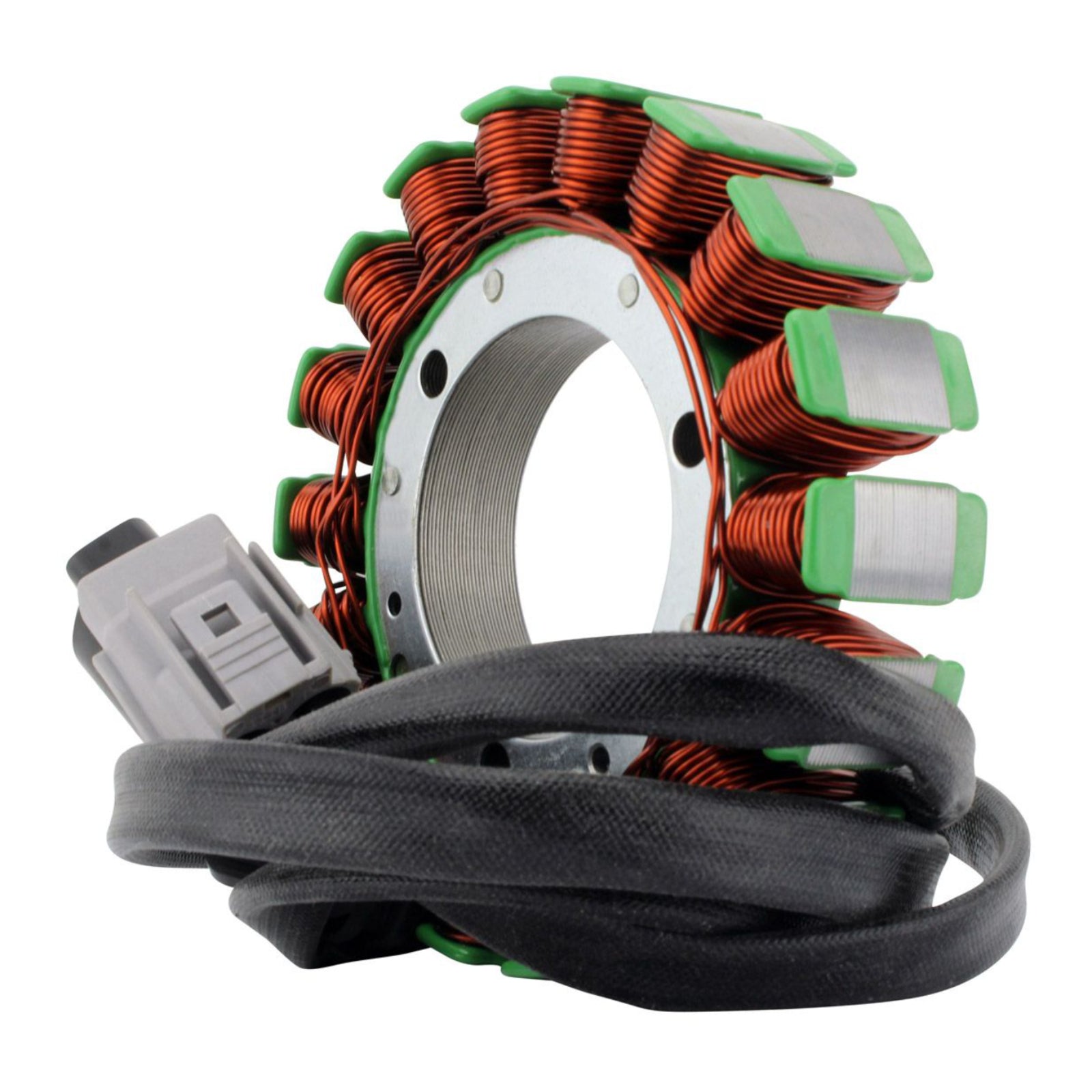

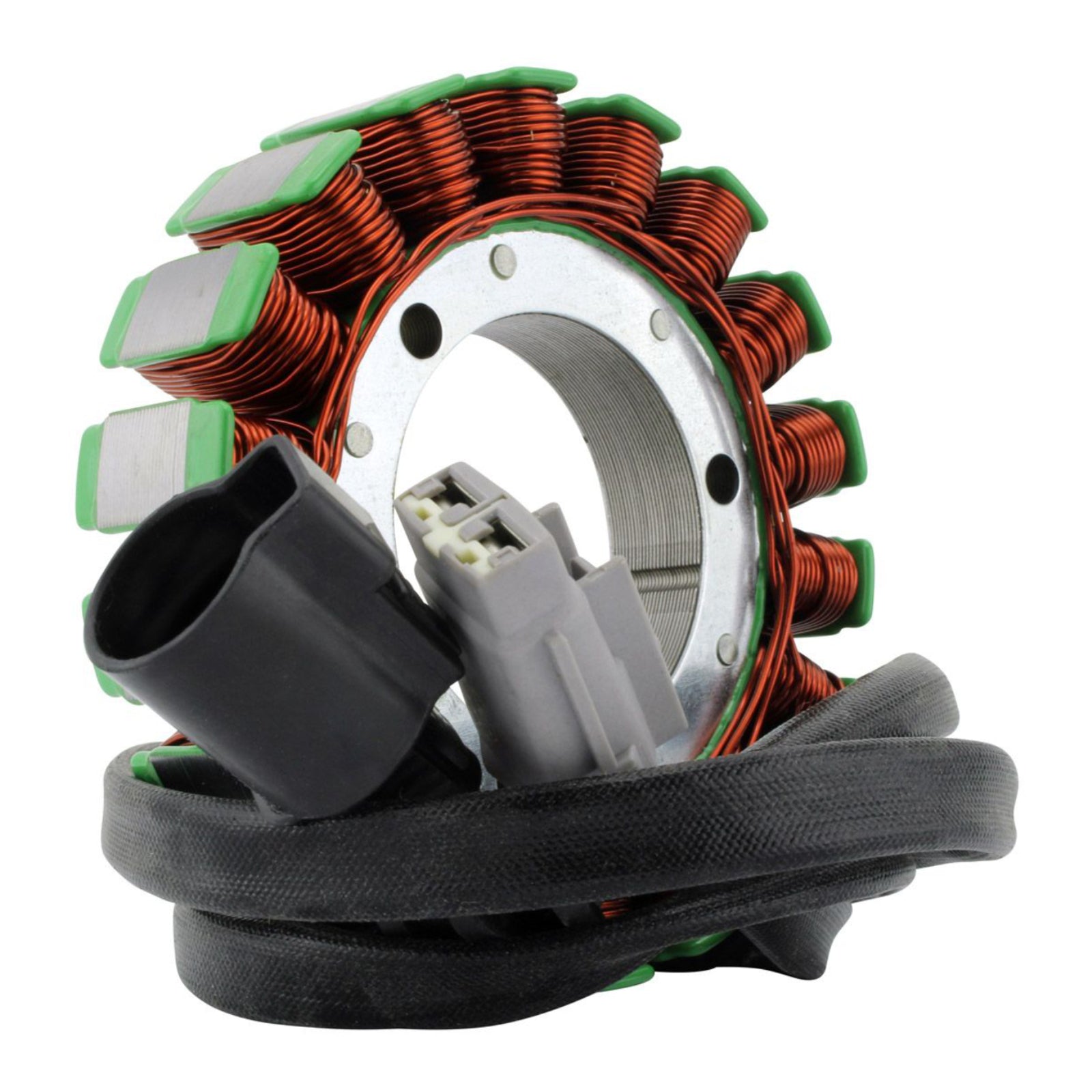

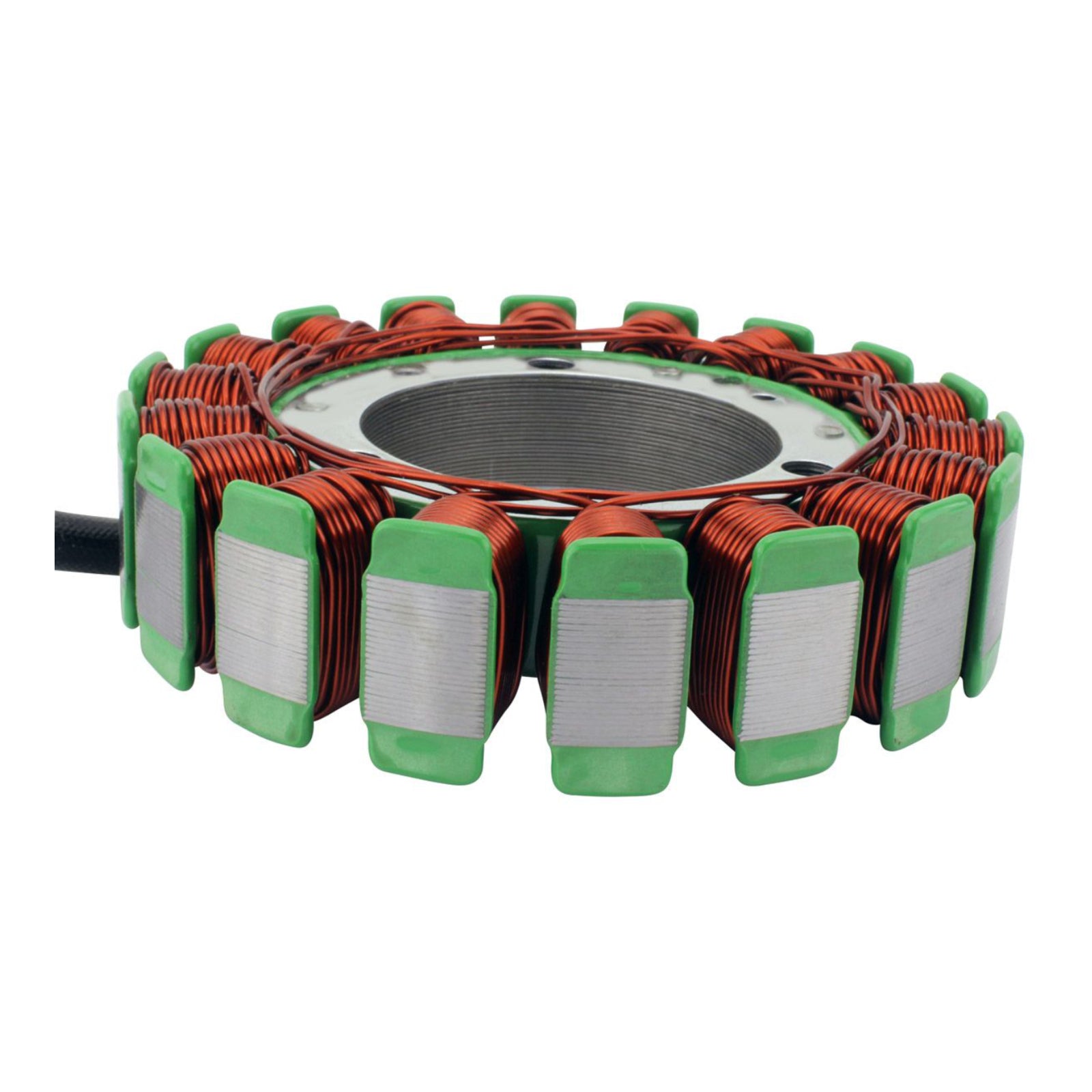

Plug-and-play aftermarket replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 54mm
- Exterior diameter: 115mm
- Thickness: 18mm
- Length of wires stator to grommet: 160mm
- Length of wires grommet to plug: 840mm
Other specifications:
- Number of wires: 3
- Number of plugs: 2
- Number of pins: 3
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Black to Black = 0.4 ohms +-20%
- Alternator: Black to ground = O.L
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

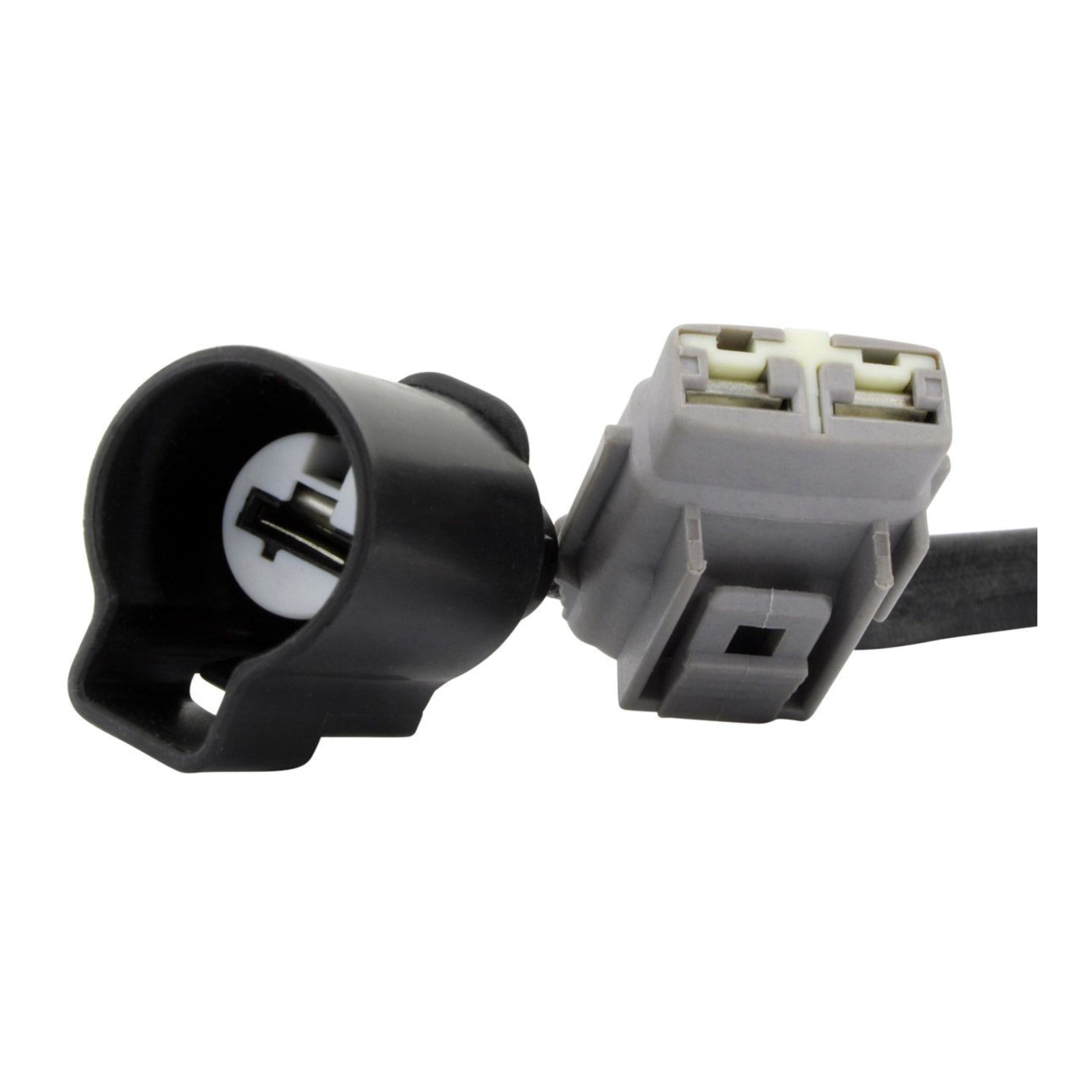

- Connectors included
- Rubber grommet included
- All products shipped are tested
