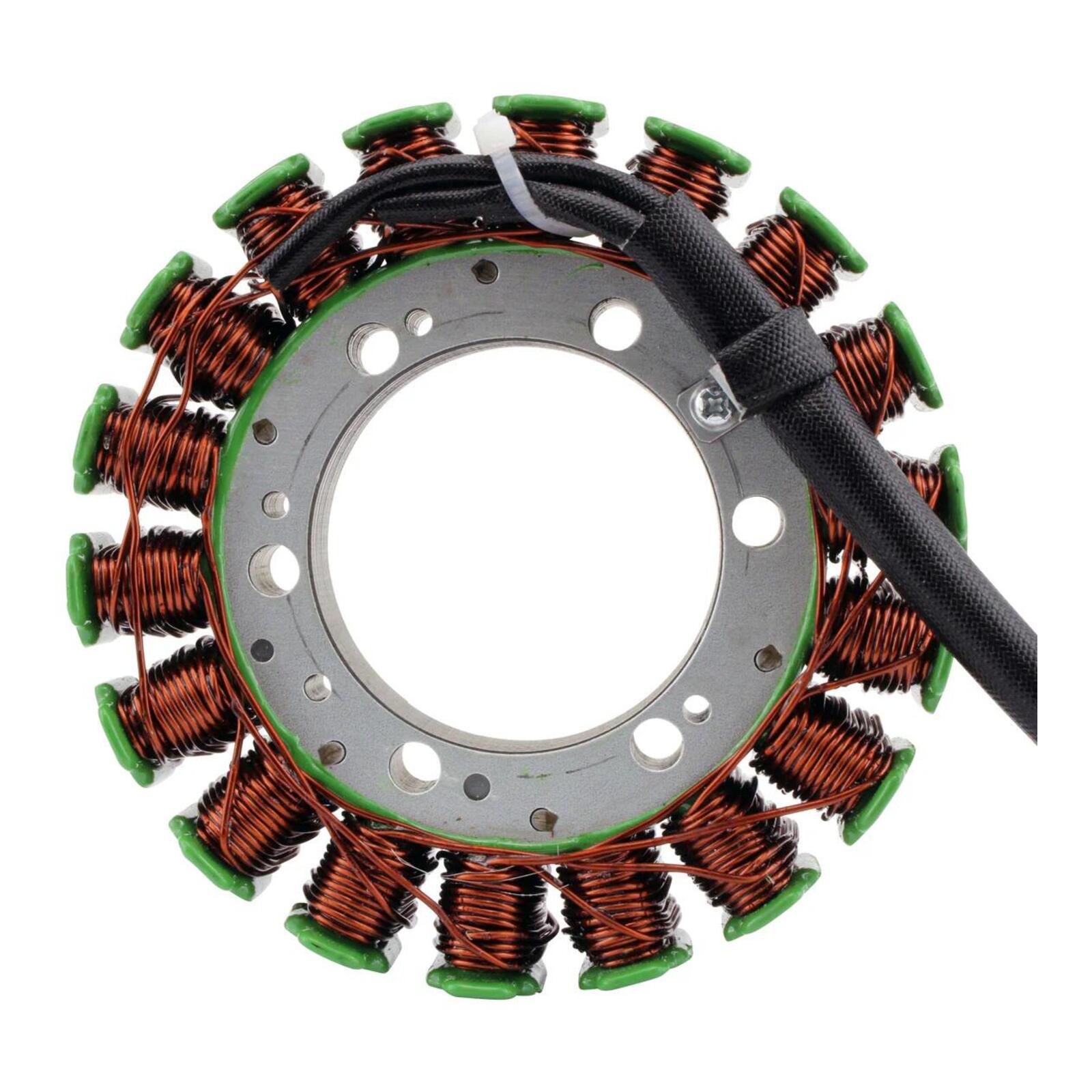

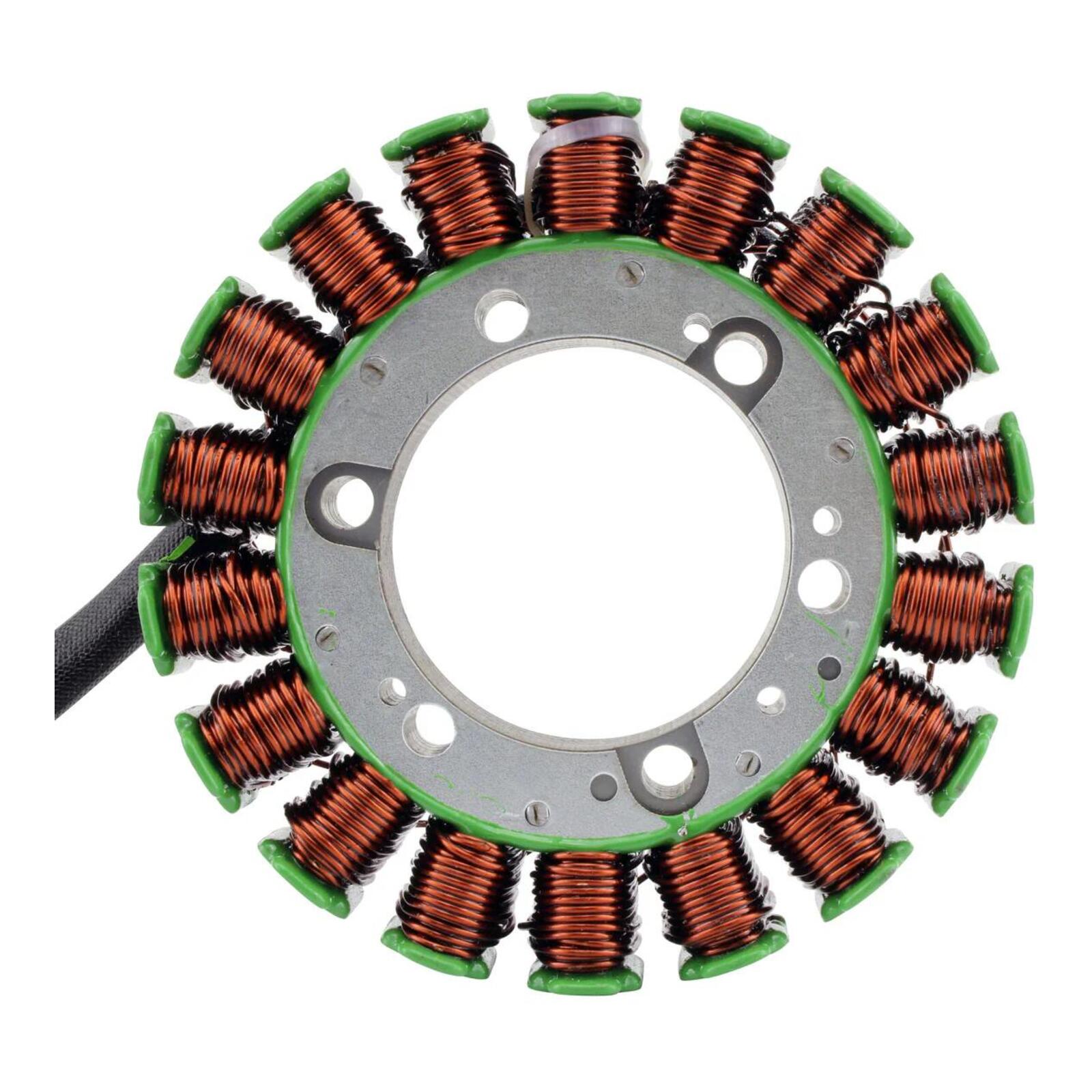

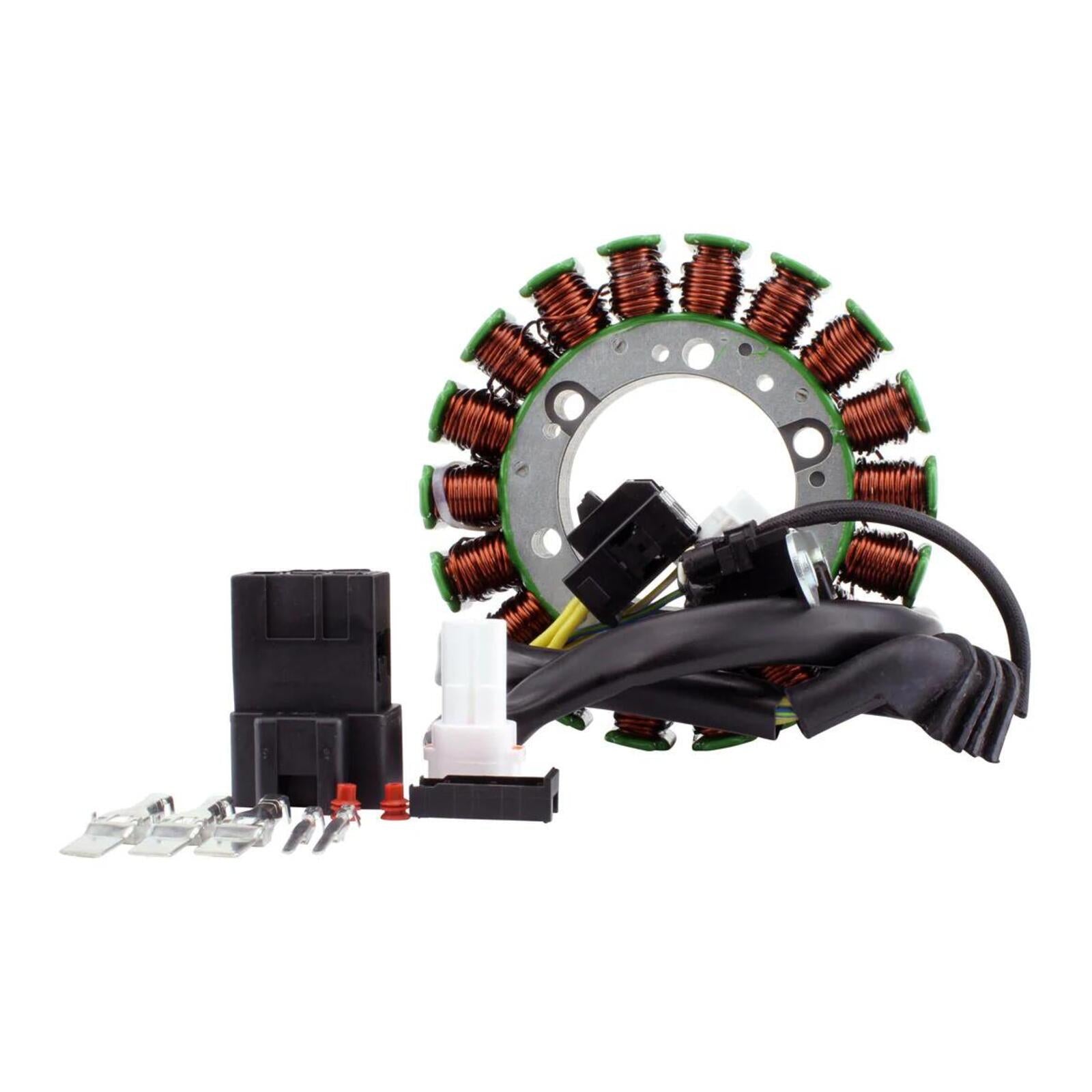

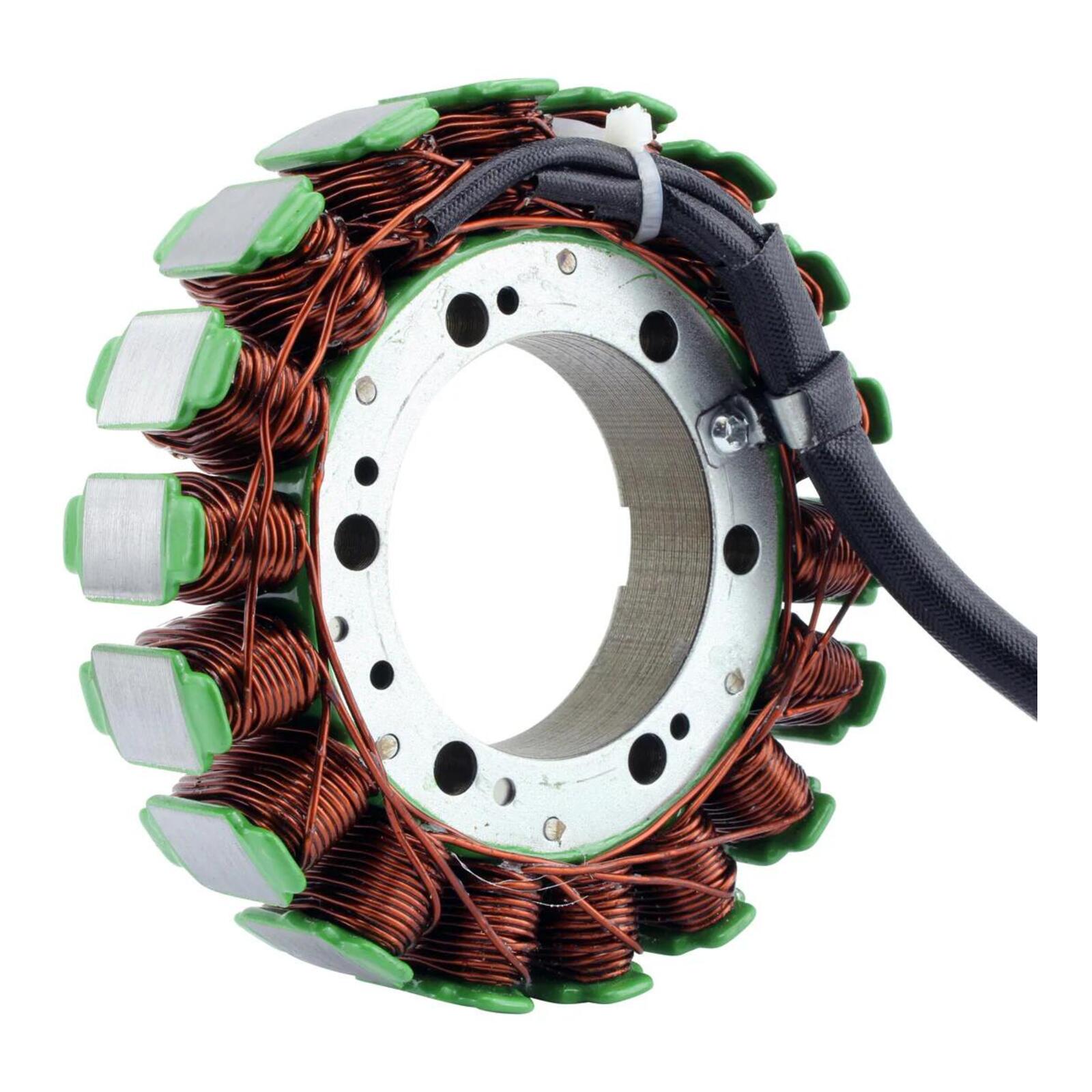

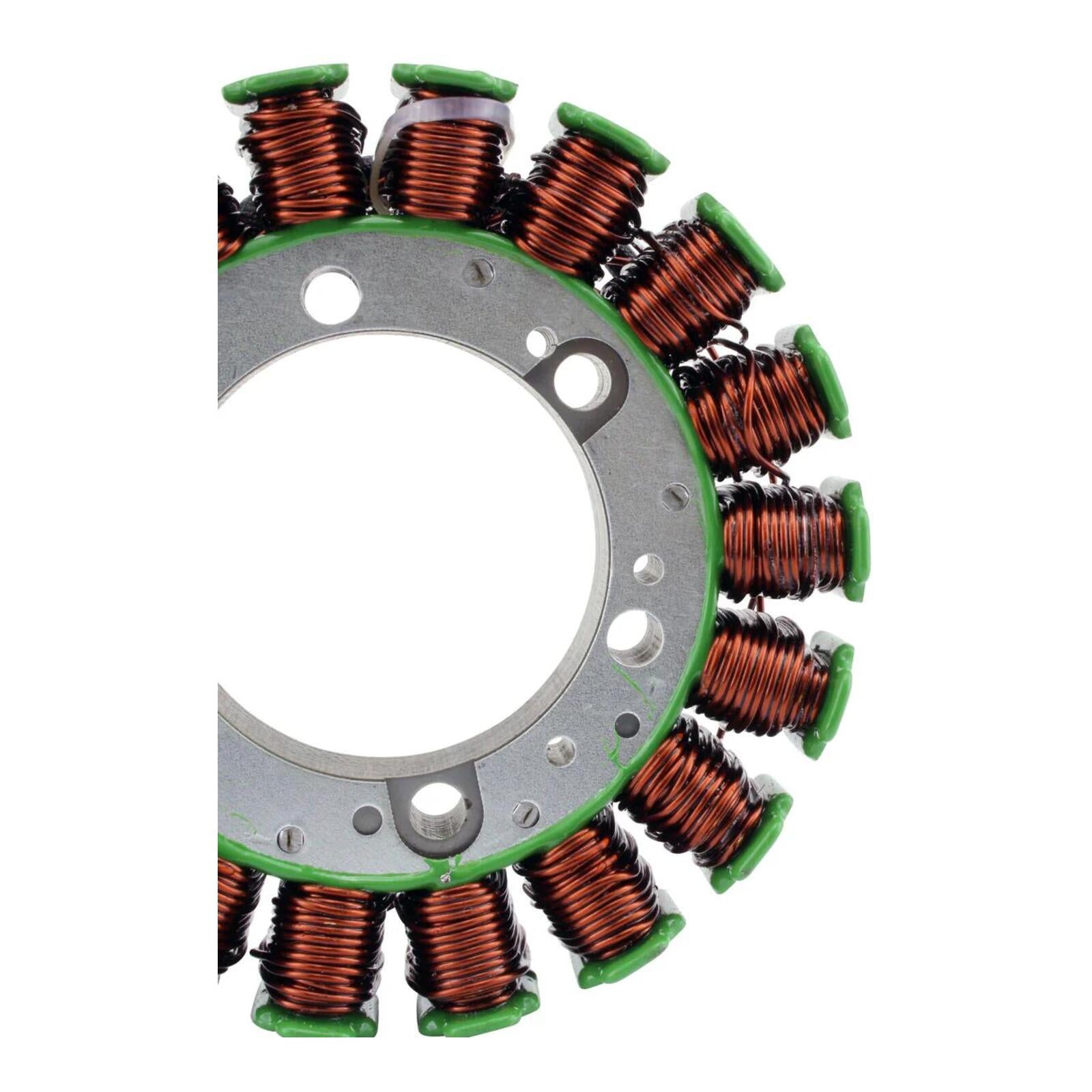

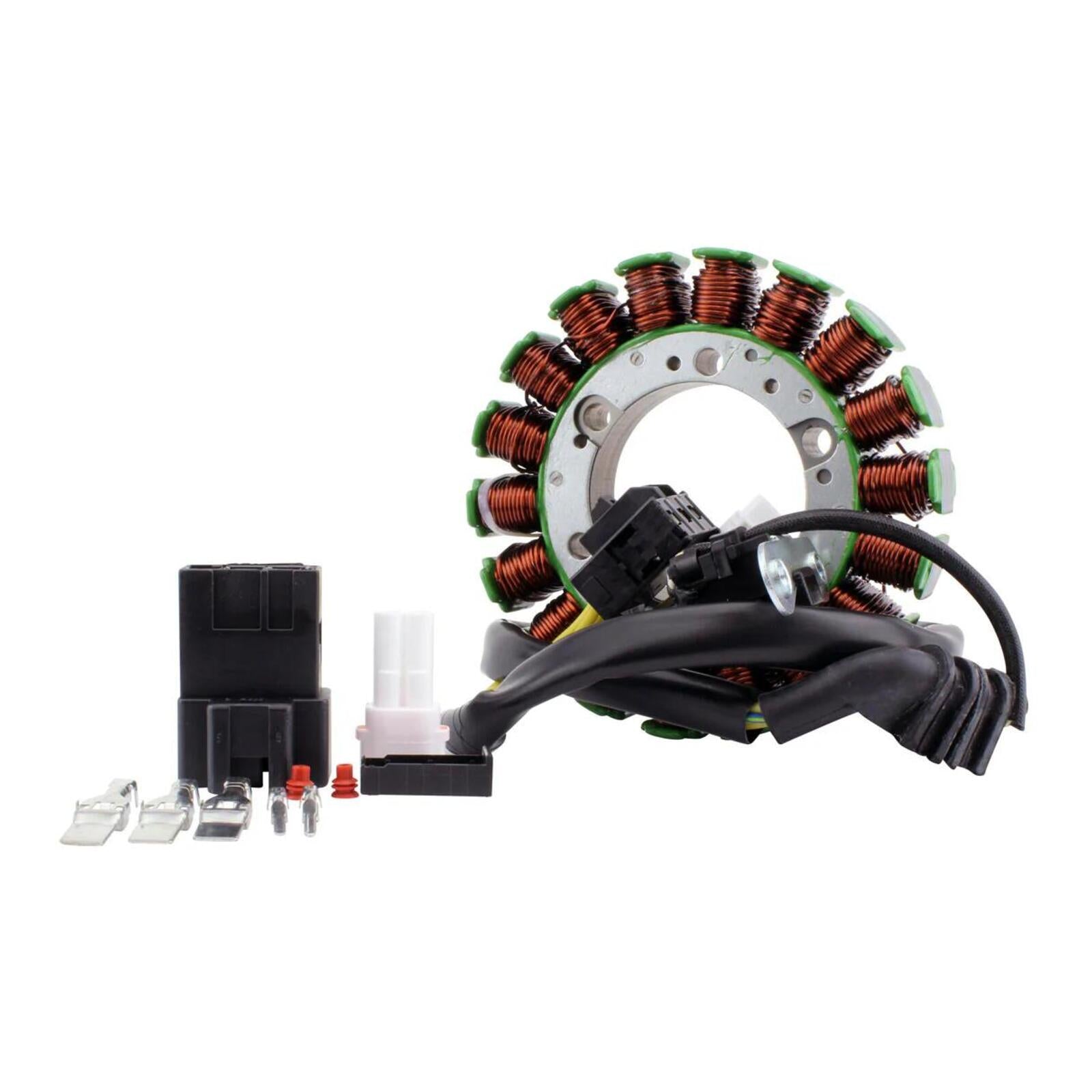

Direct replacement for your original unit.
Features:
- Plug-and-play direct fit for easy installation.
- Manufactured using high-grade lamination materials.
- Premium copper windings resistant to temperatures up to 200°C.

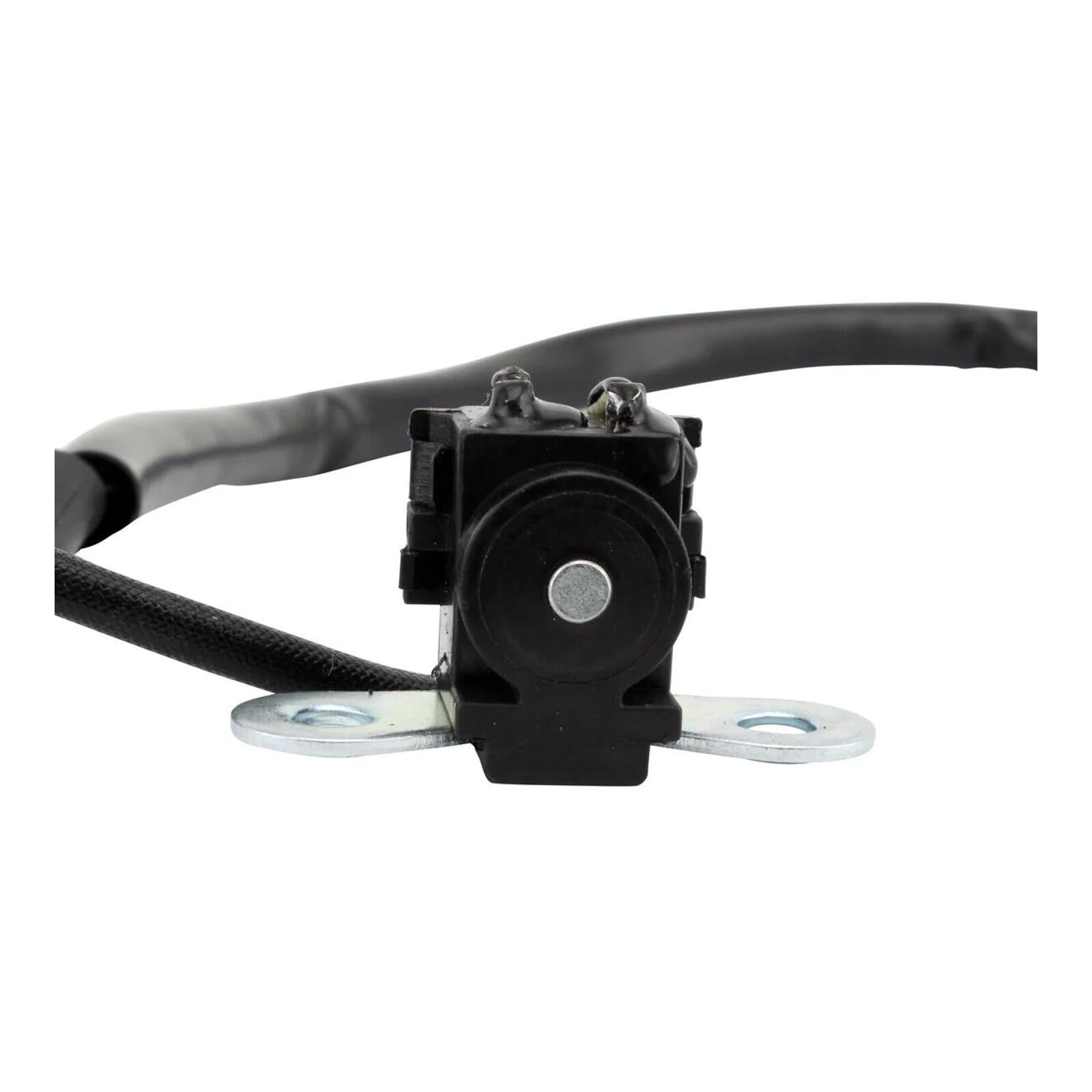

- Pickup pulsar coil included.

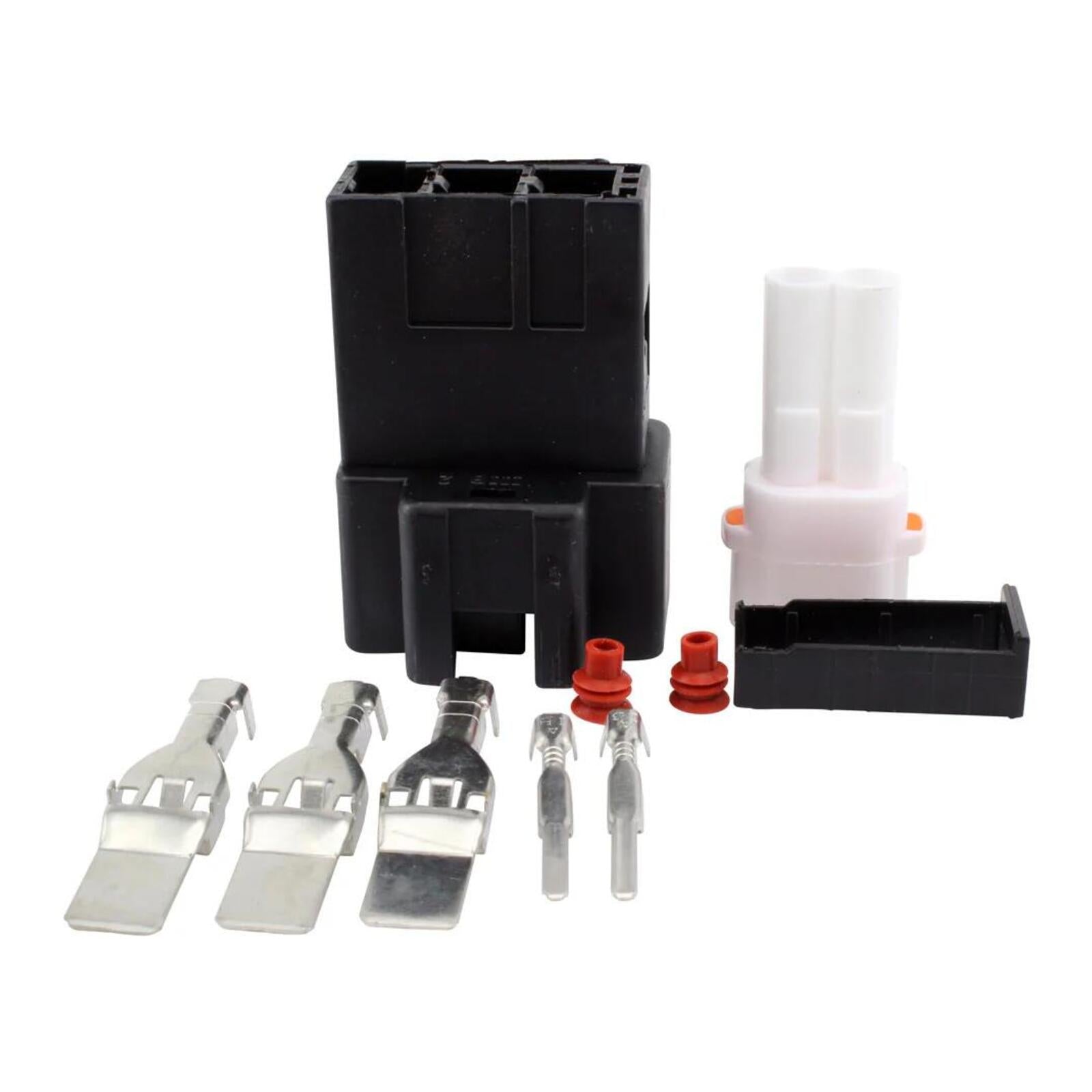

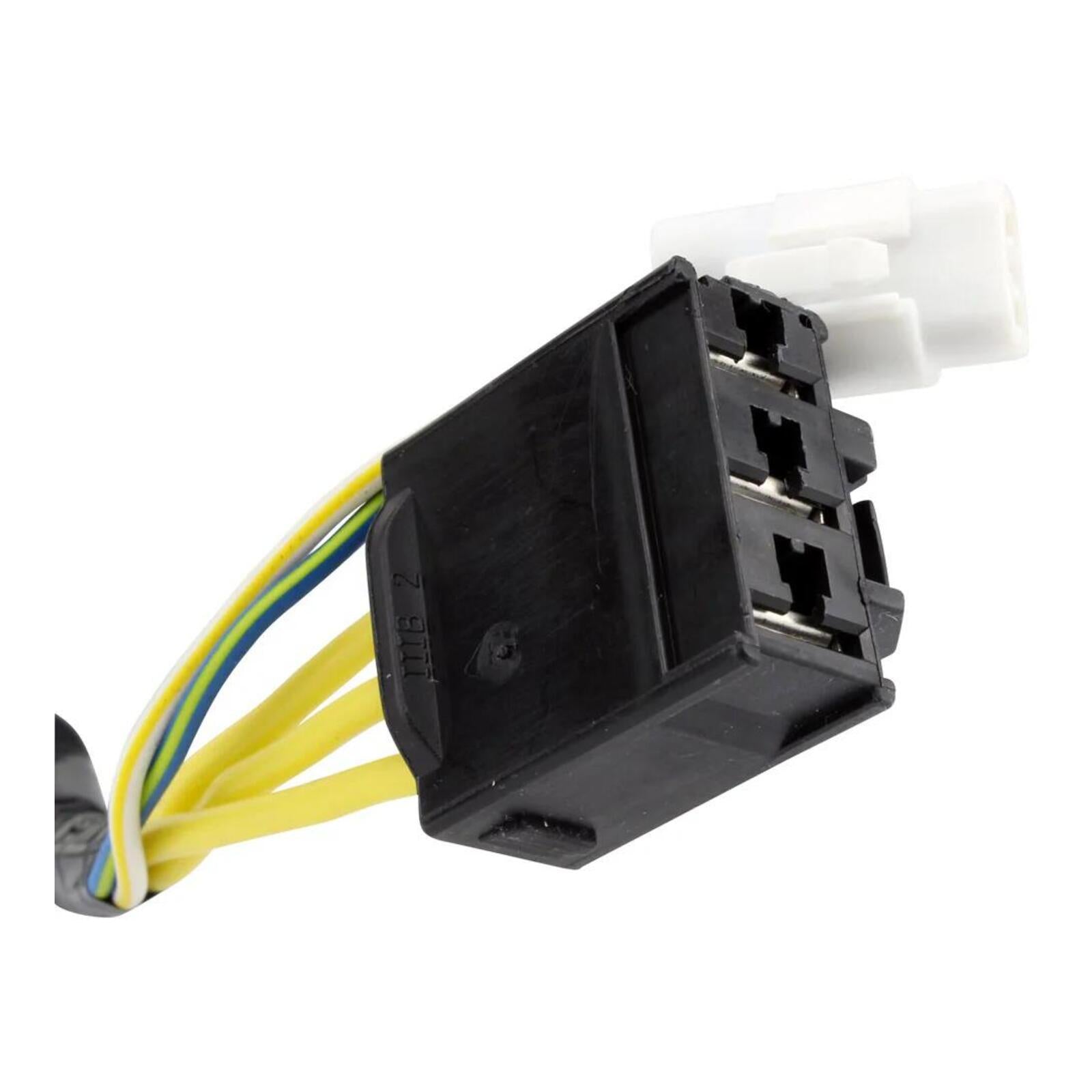

- Connectors included.

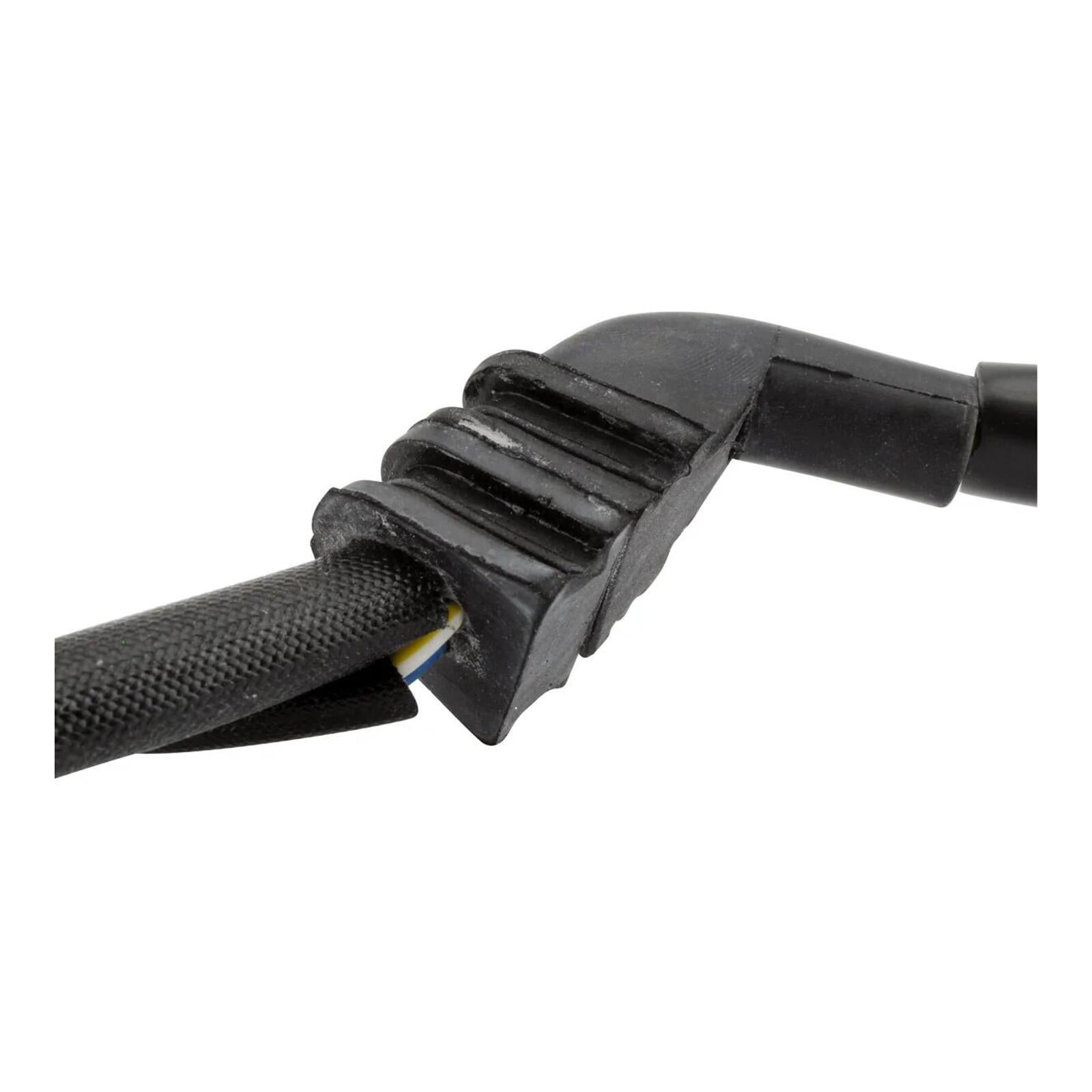

- Rubber grommet included.
- All units are tested before shipping.
Specifications:
- Interior Diameter: 54 mm
- Exterior Diameter: 118 mm

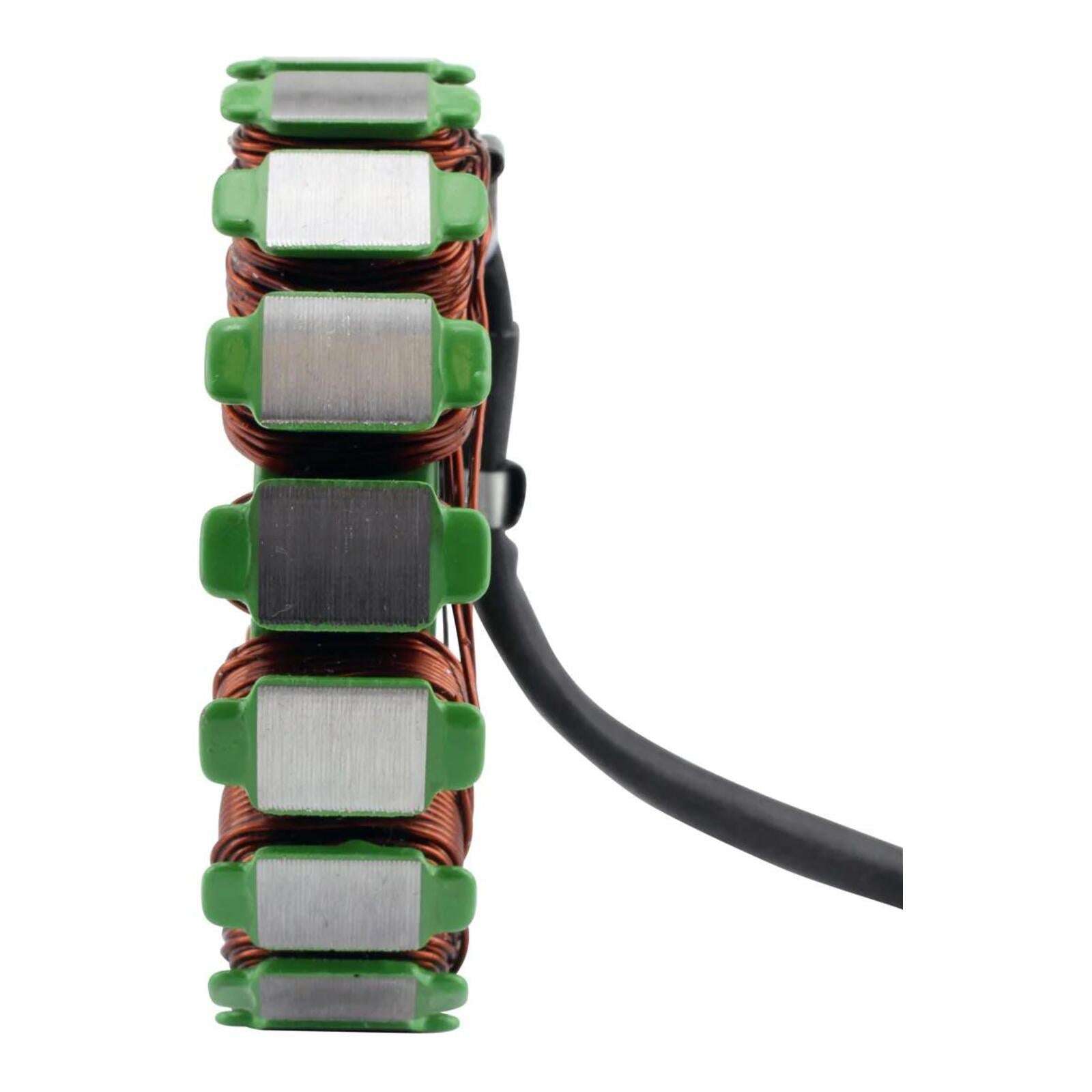

- Thickness: 19 mm
- Stator Wire Length (Stator to Grommet): 110 mm
- Stator Wire Length (Grommet to Plug): 520 mm
- Pickup Coil Wire Length (to Grommet): 10 mm
- Number of Wires: 5
- Number of Plugs: 2
- Number of Pins: 5

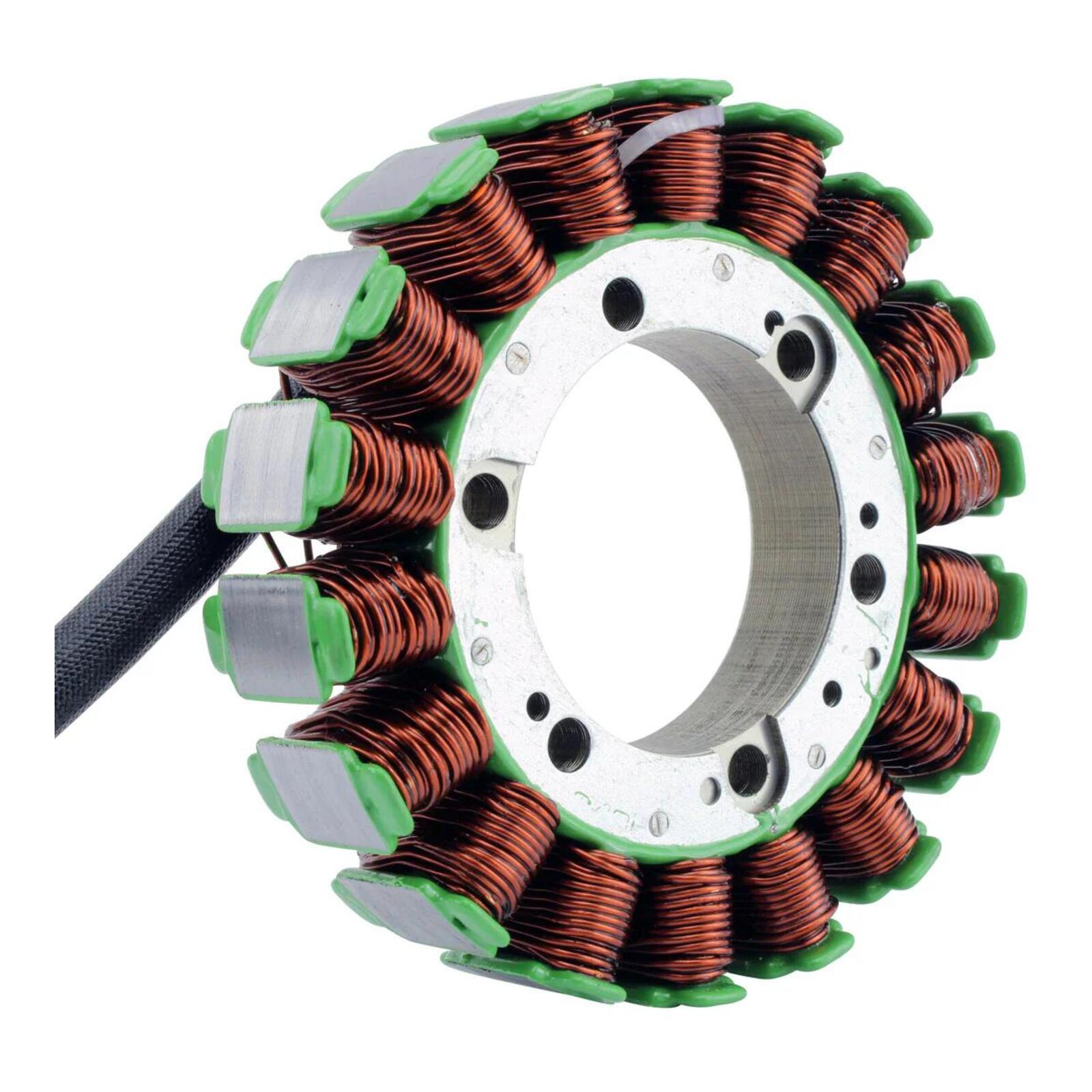

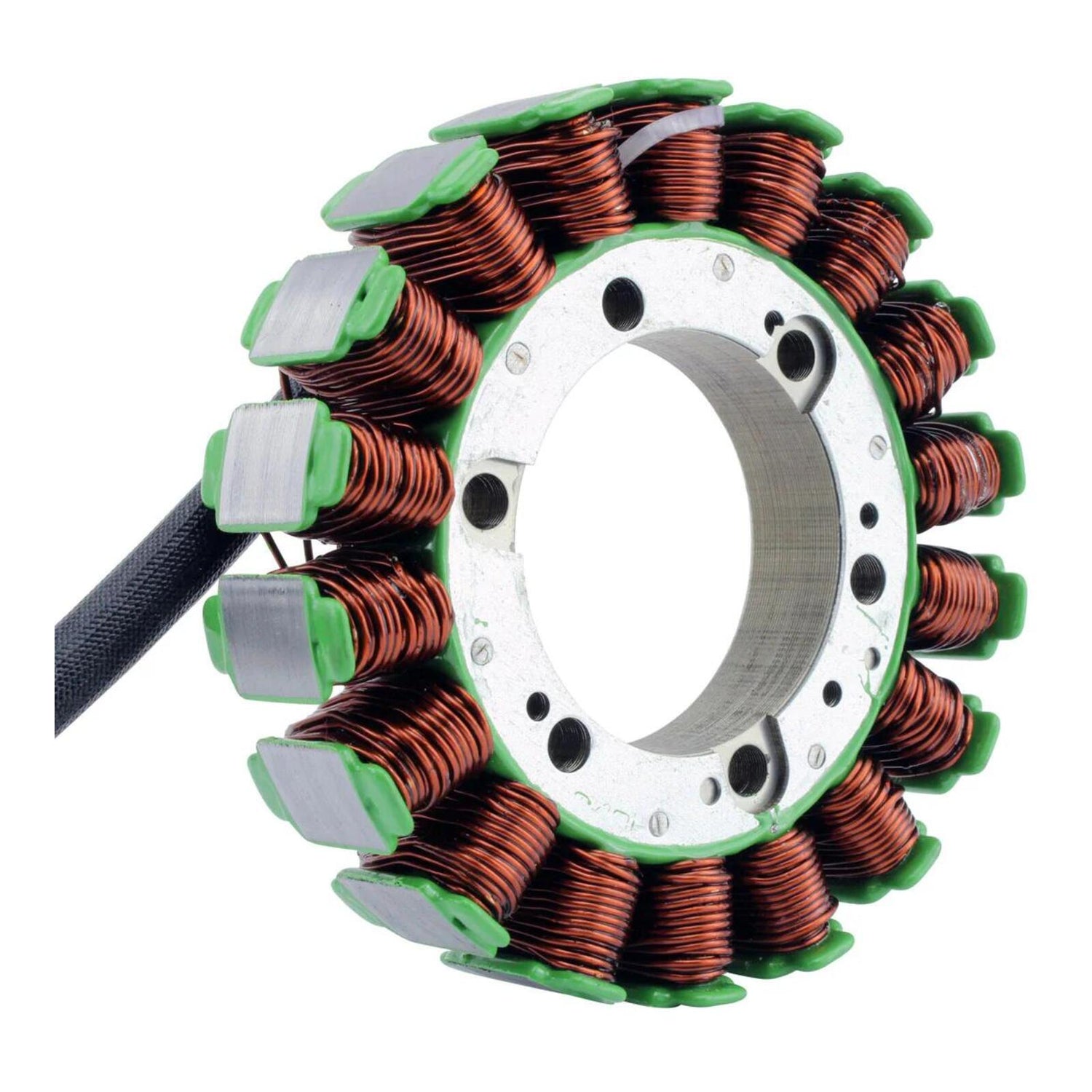

- Number of Poles: 18
Resistance Values:
- Alternator Resistance: Between each yellow wire = 0.4 Ω ±20%
- Pickup Coil Resistance: Yellow/White to Yellow/Blue = 272 Ω ±20%
