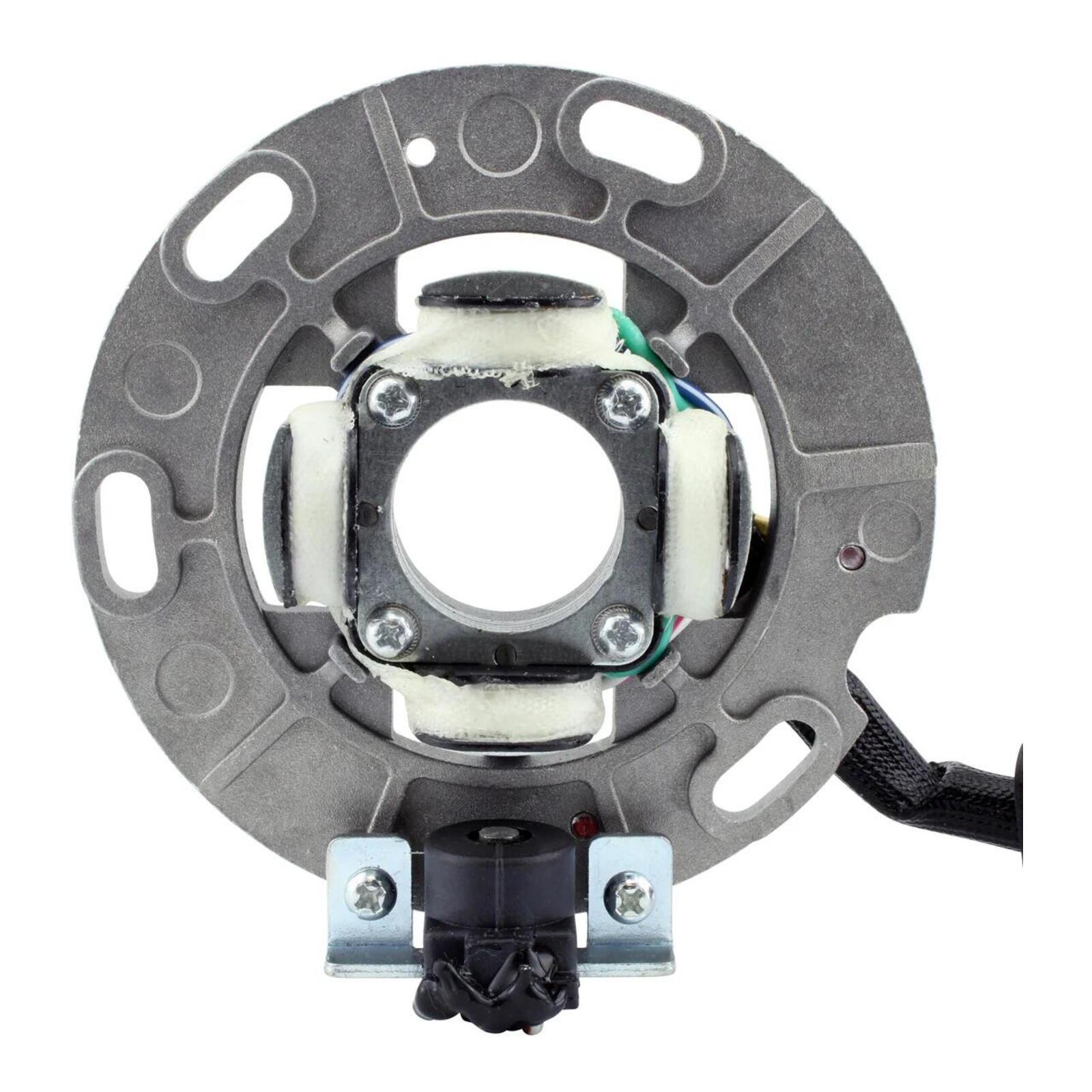

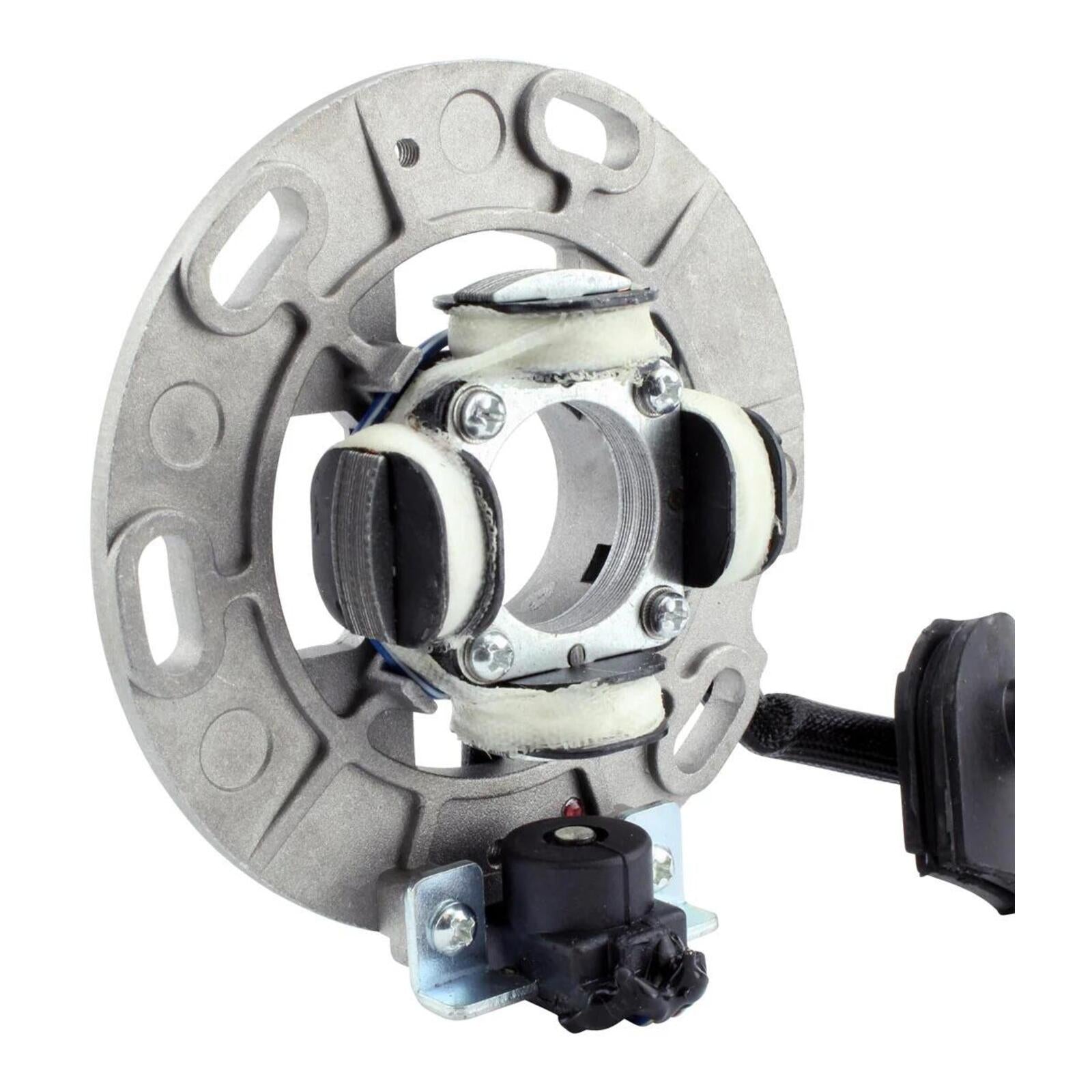

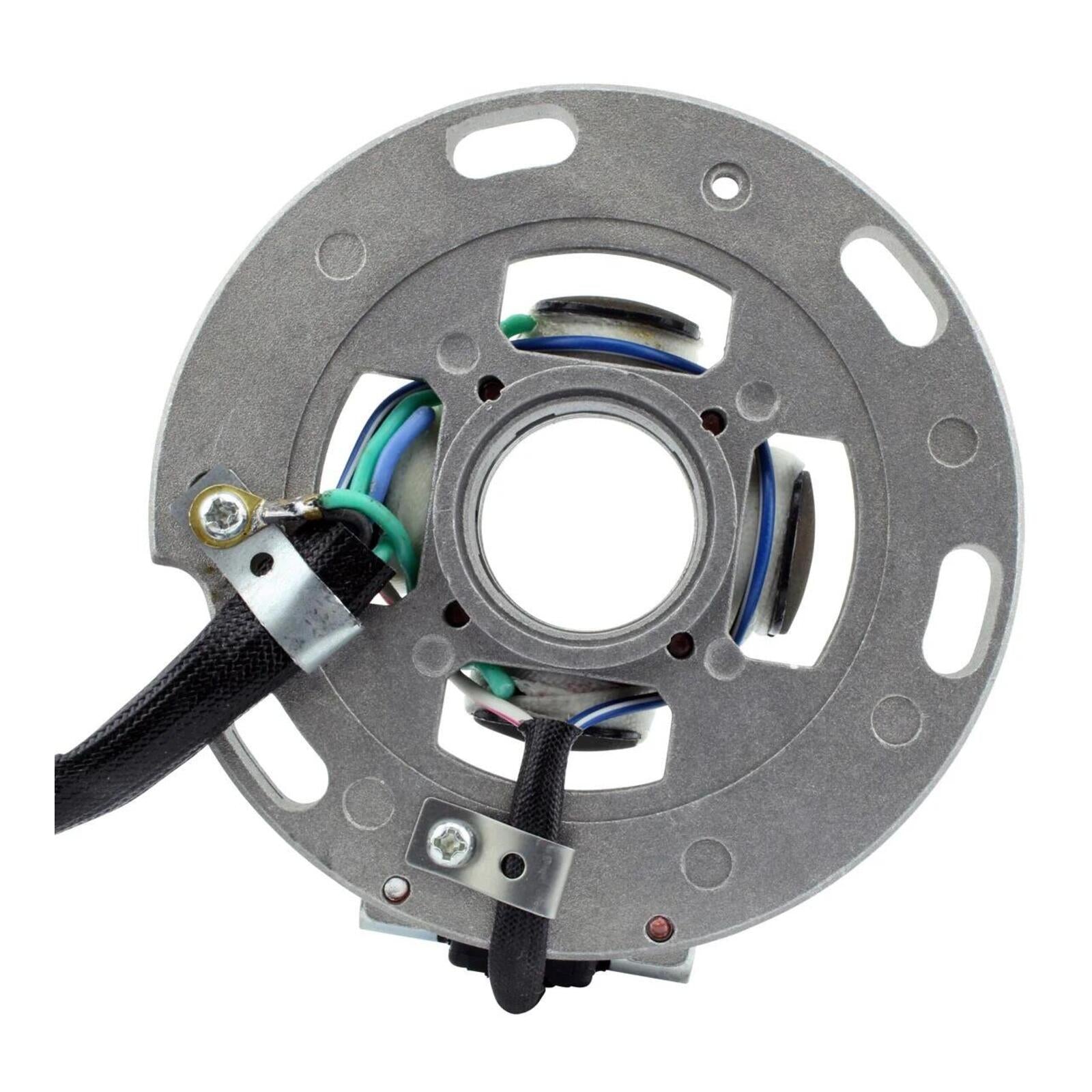

Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

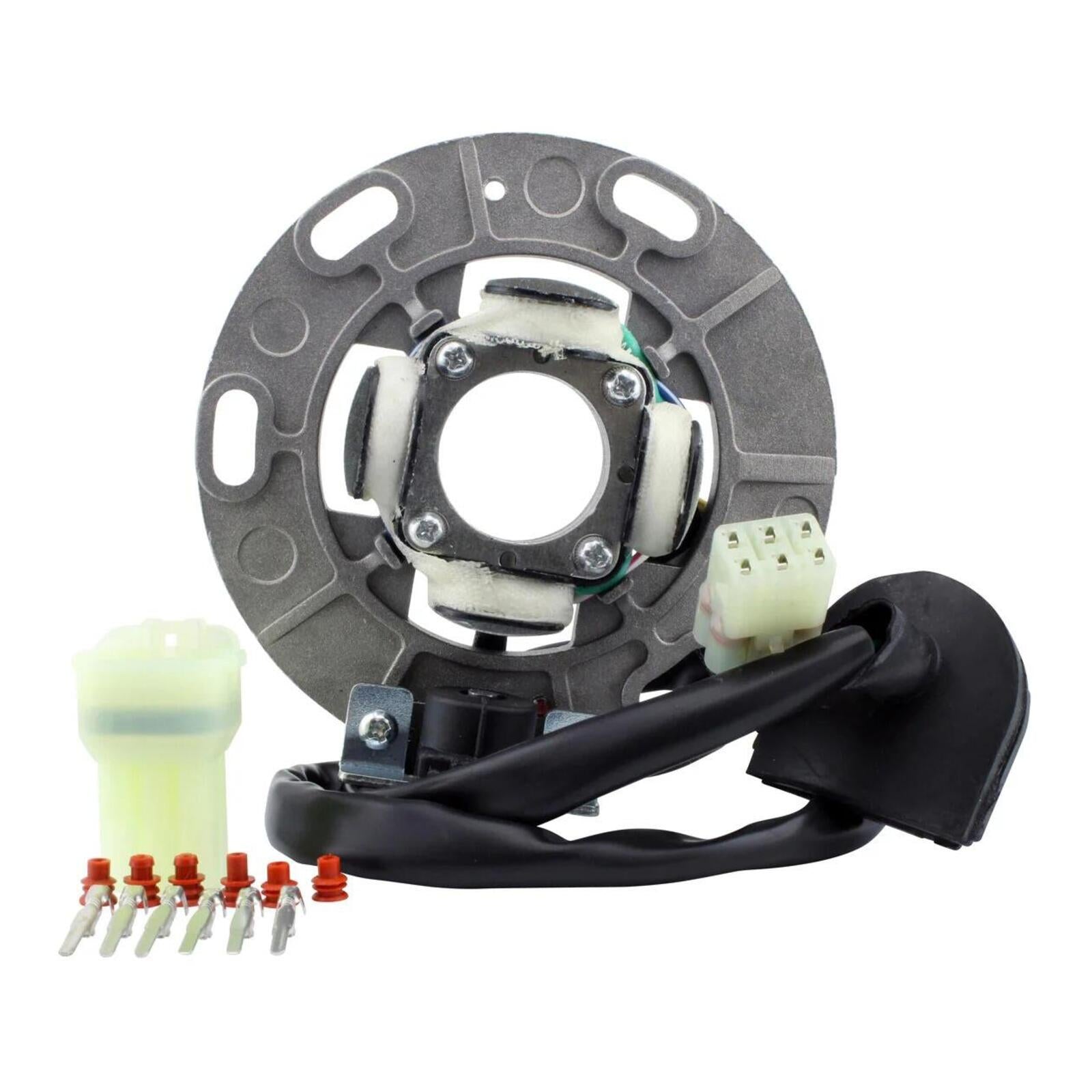

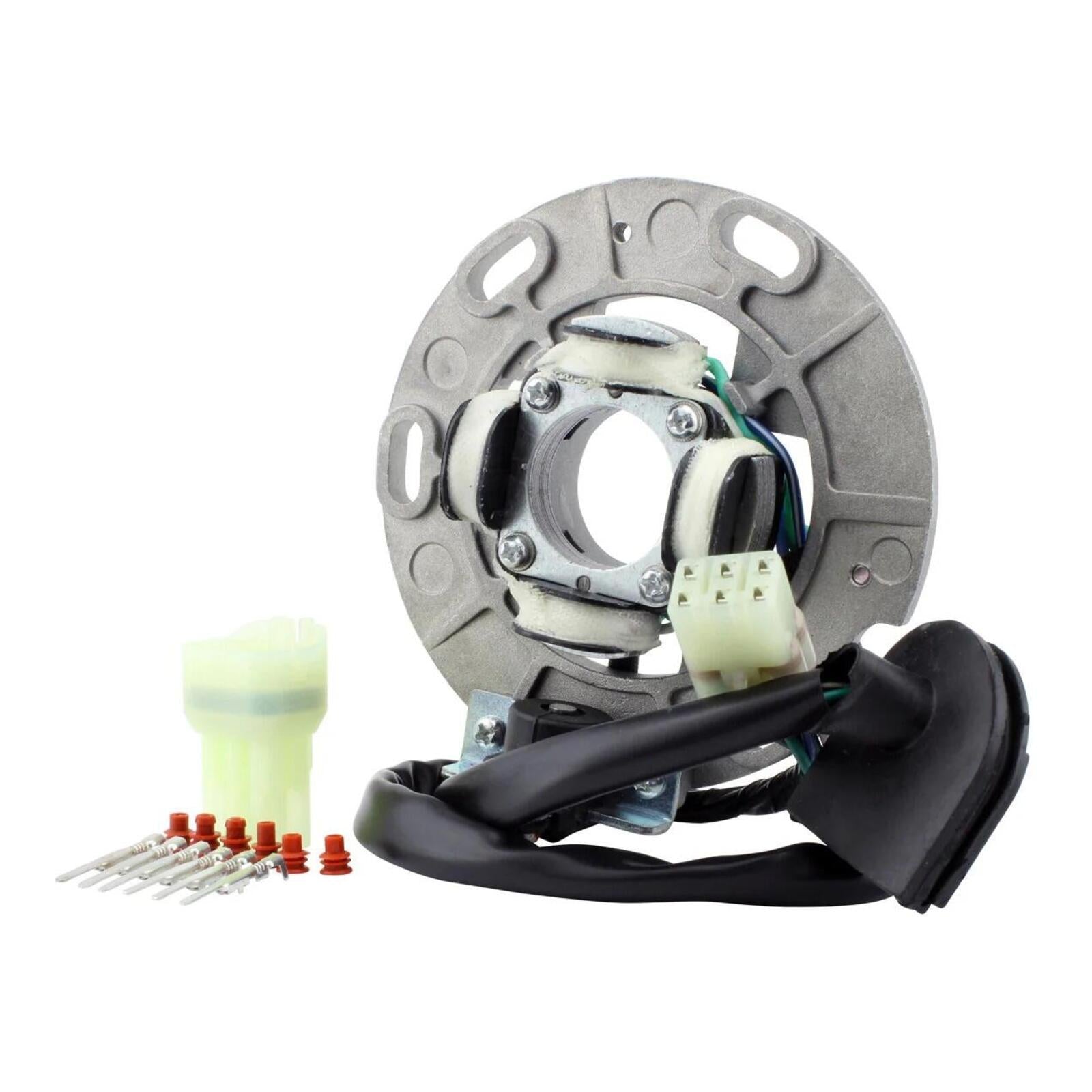

Brand new aftermarket stator.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation

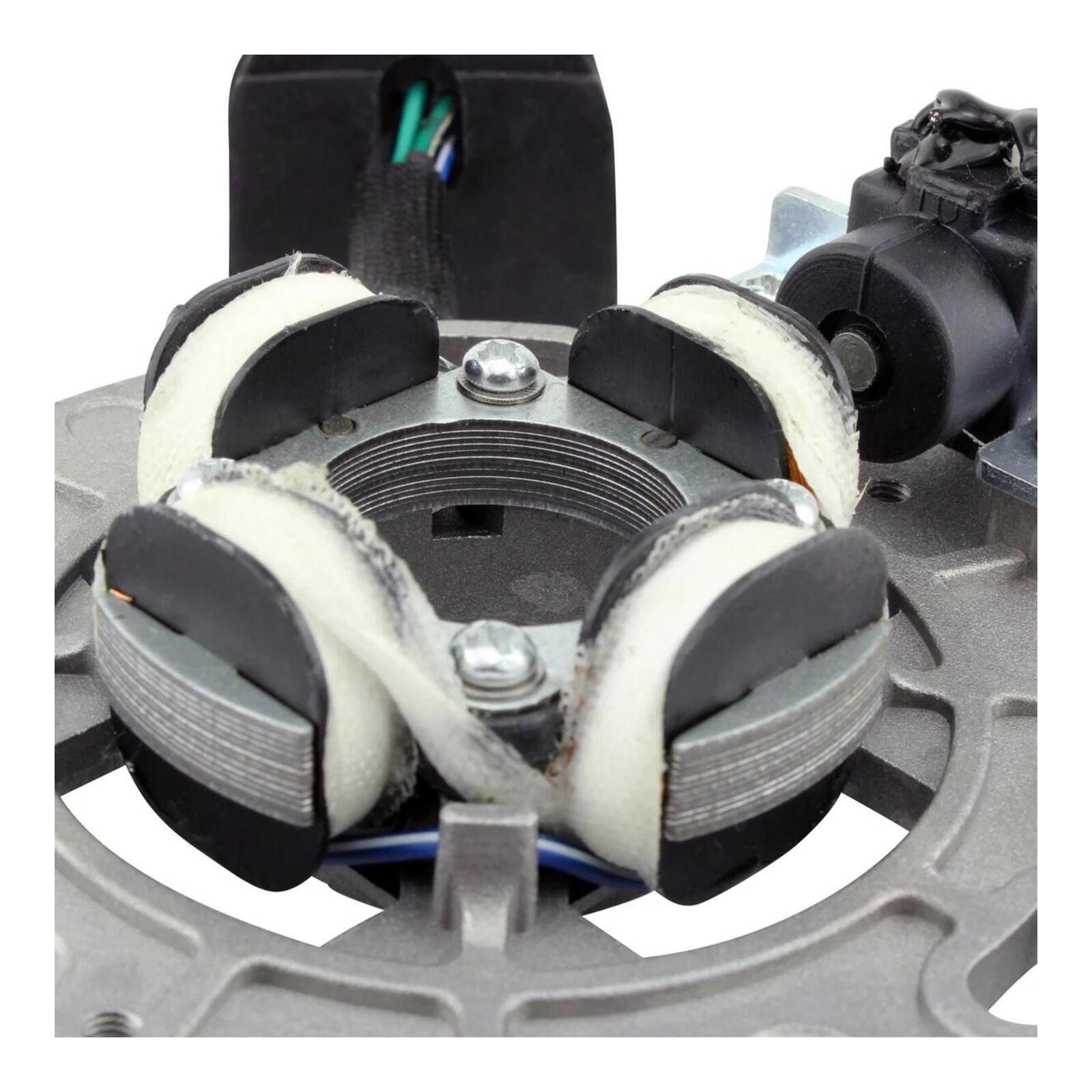

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

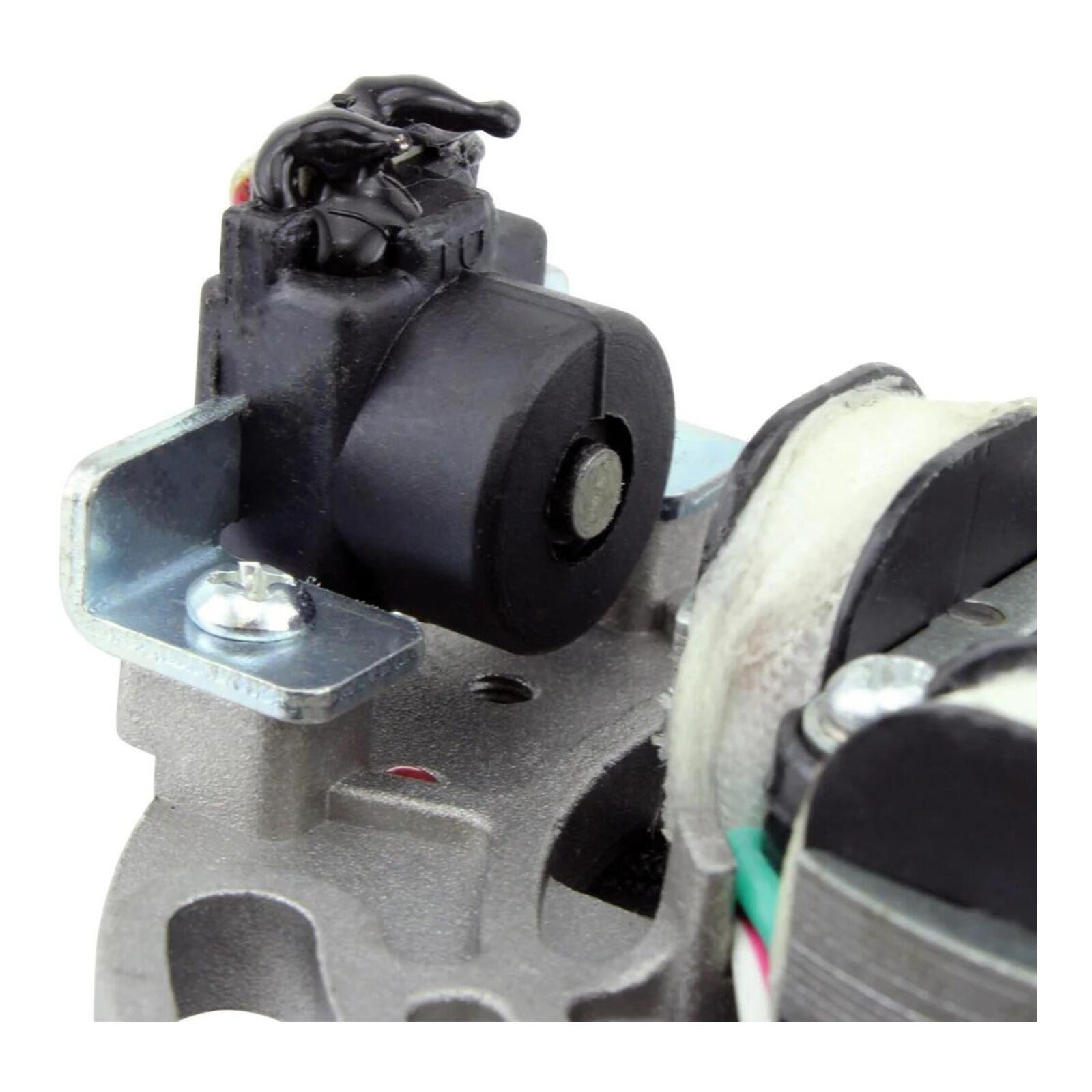

• Pick up pulsar coil included

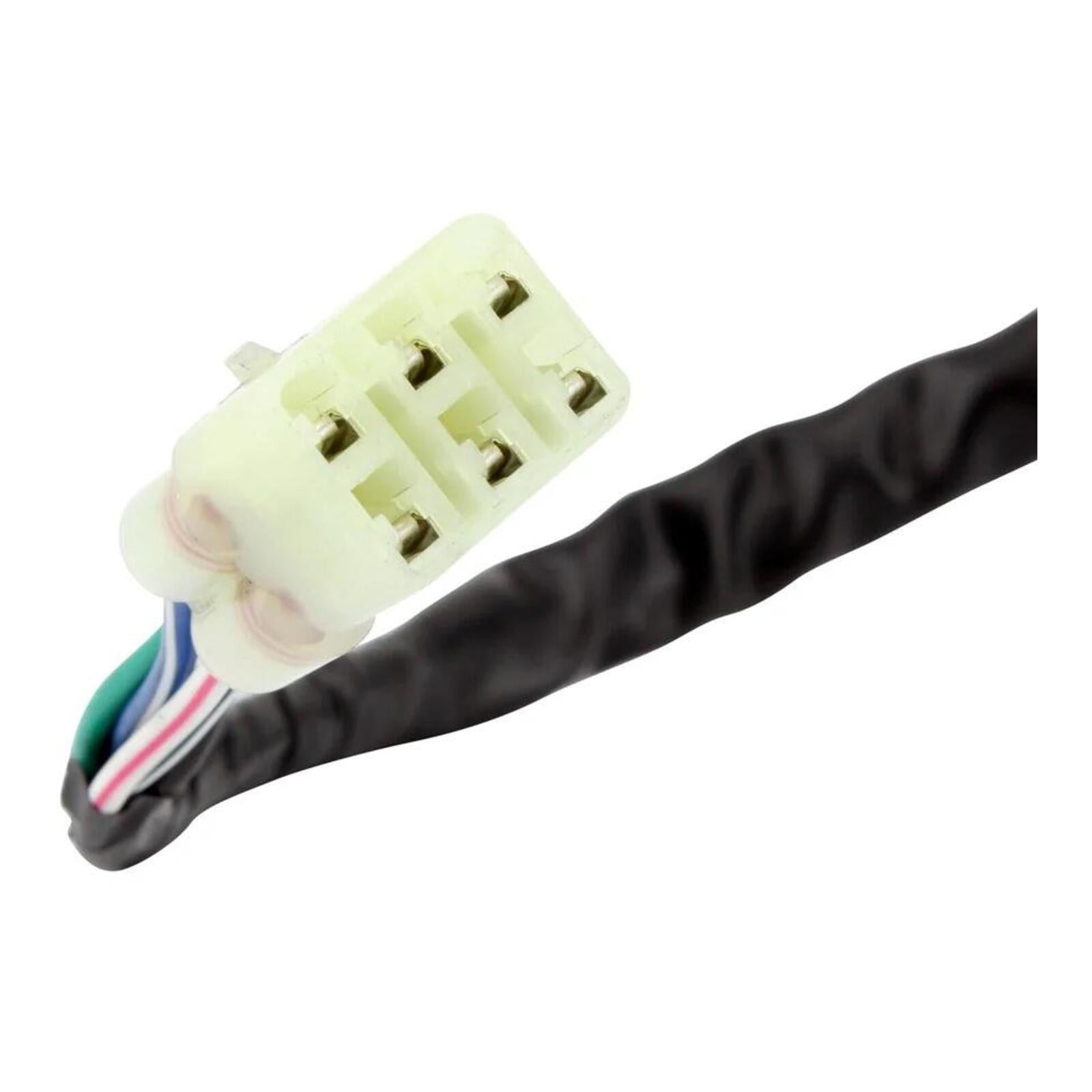

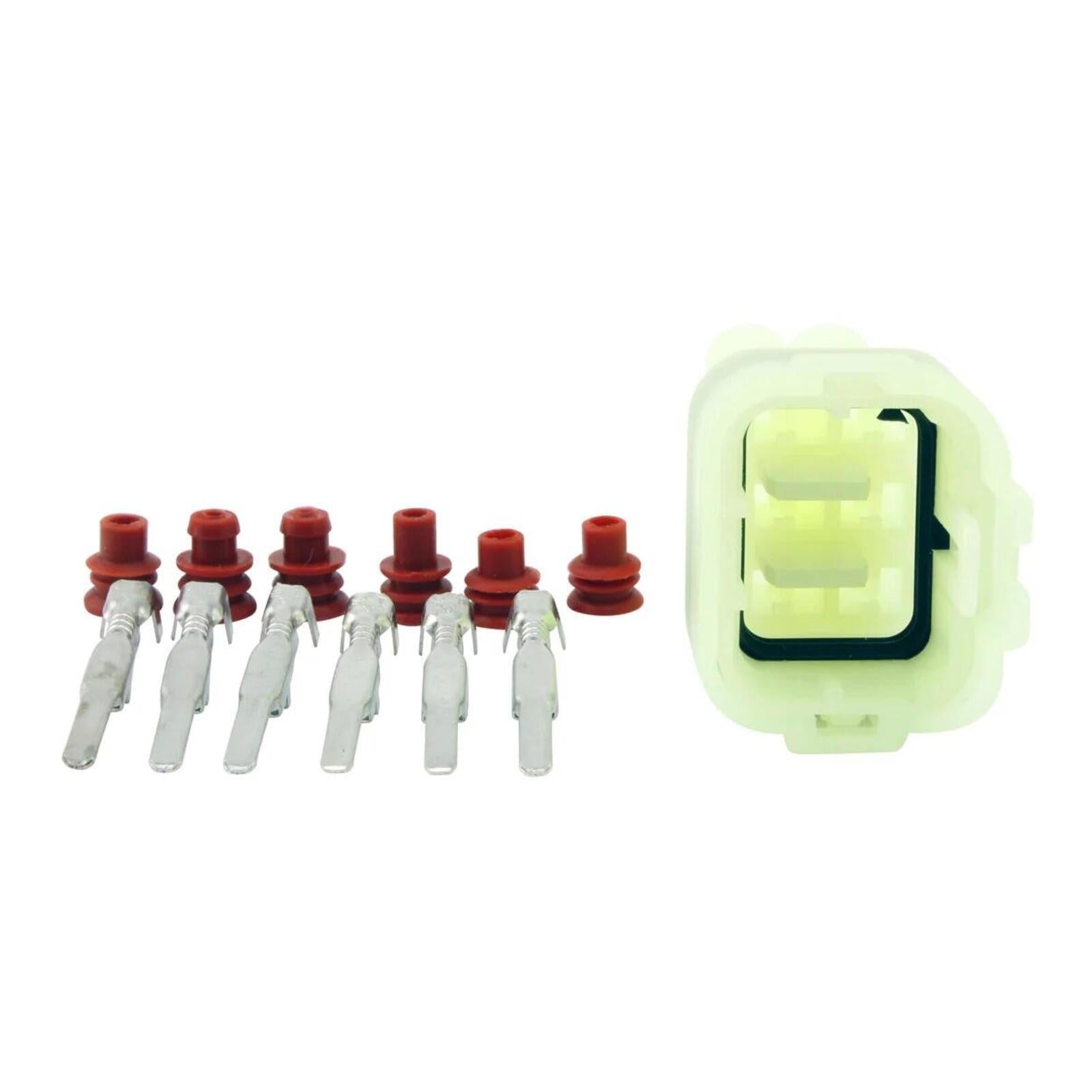

• Connectors included

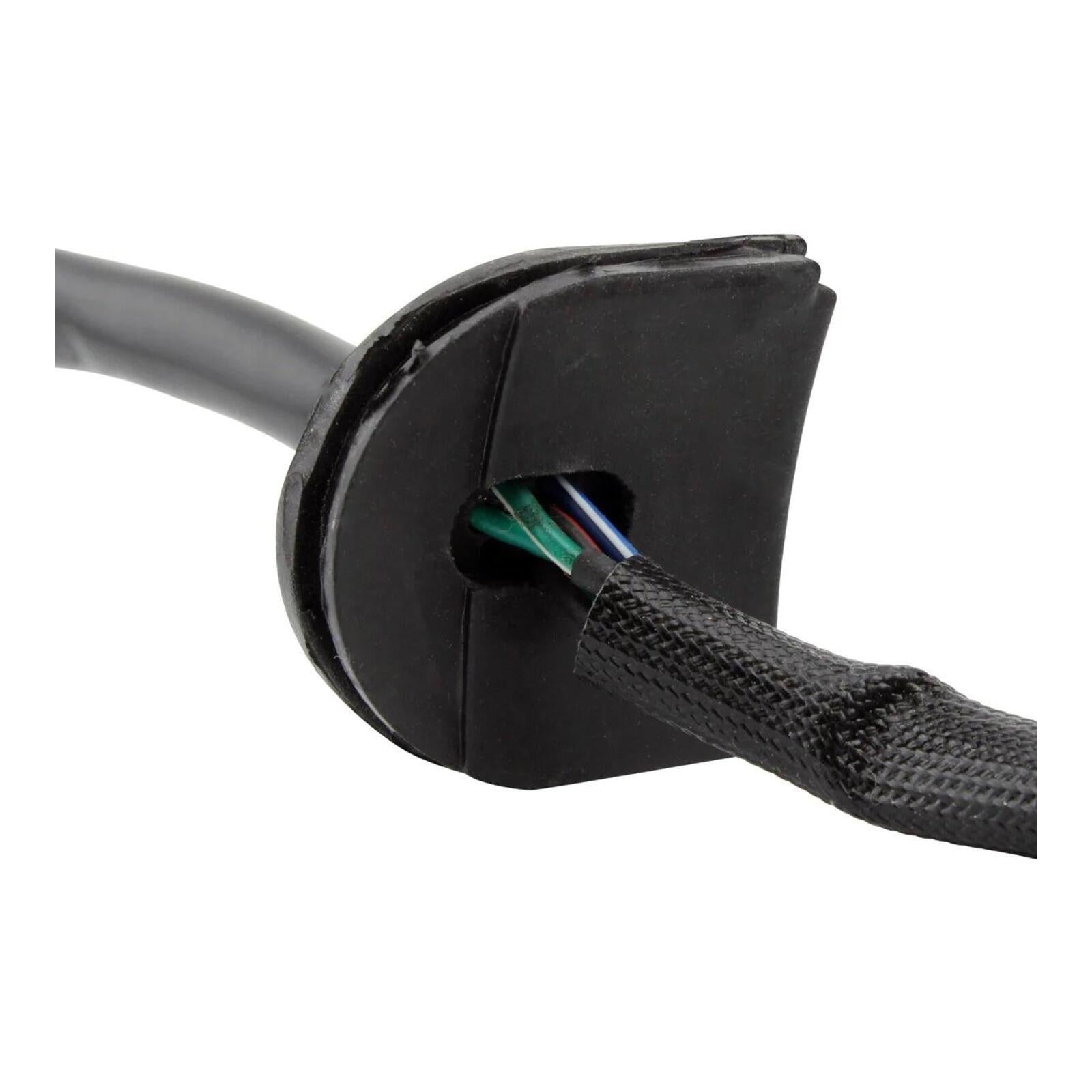

• Rubber grommet included

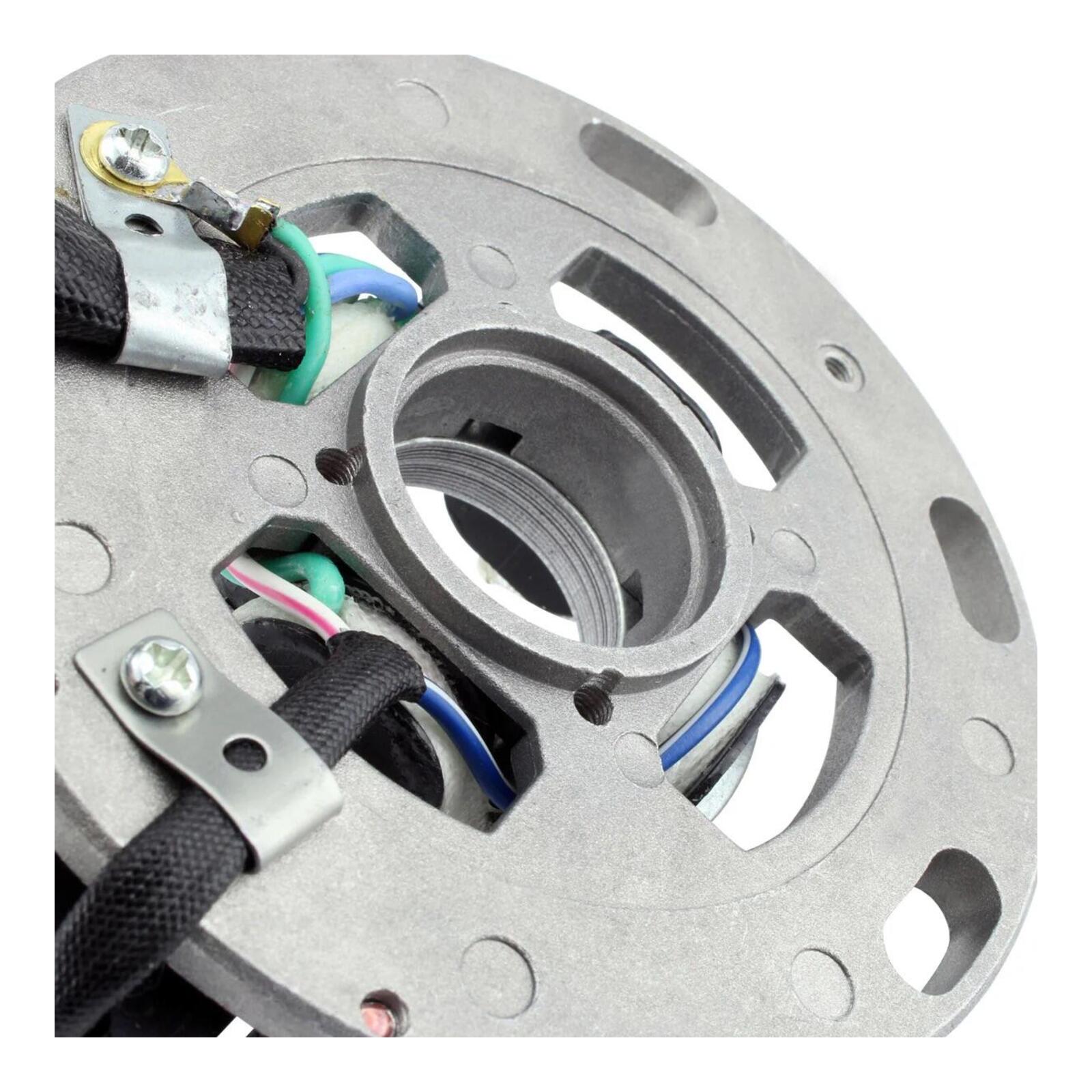

• Back Plate included
• All products shipped are tested

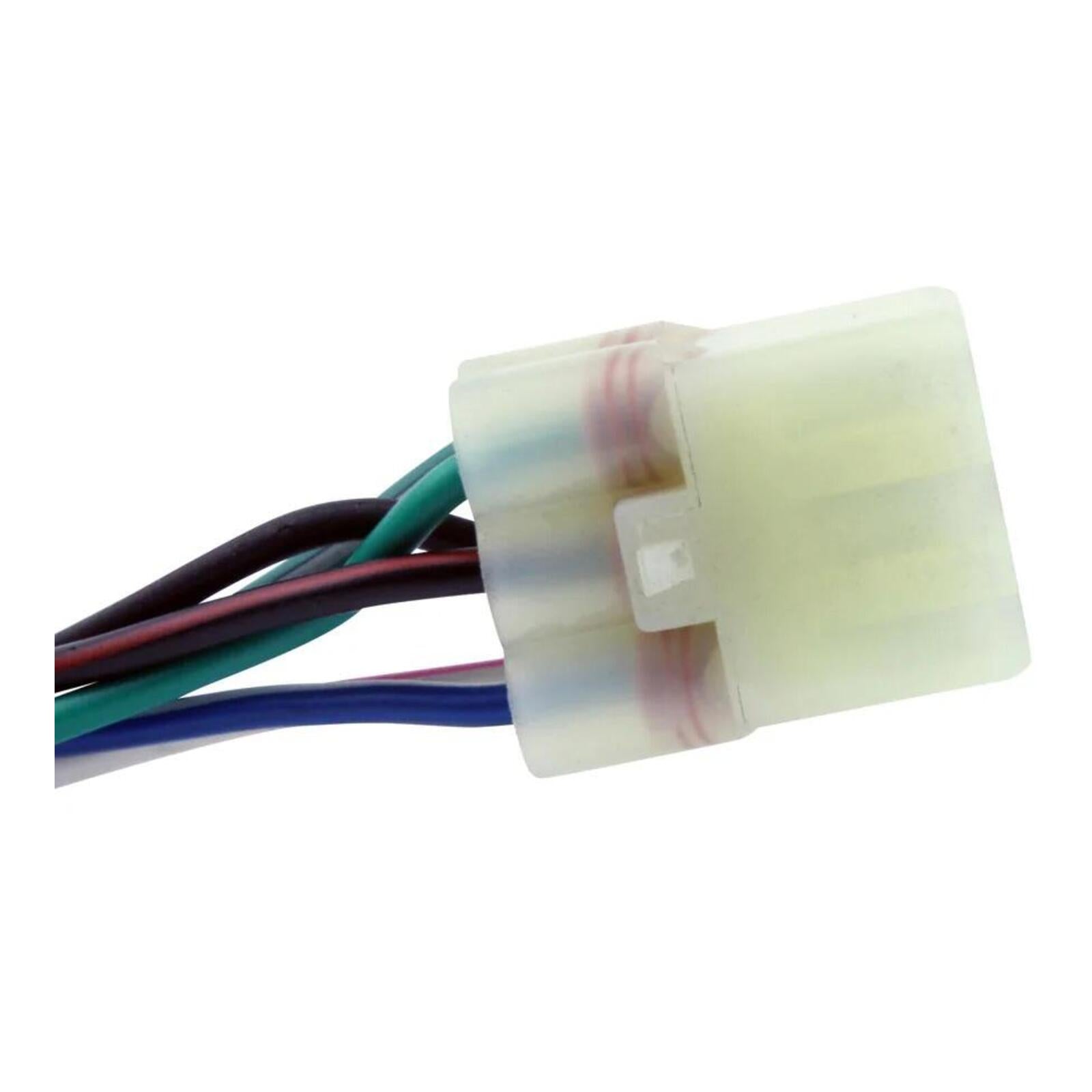

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before Installing the New Stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter : 28 mm
• Exterior diameter : 59.30 mm
• Thickness : 33 mm
• Length of wires stator to grommet : 32 mm
• Length of wires grommet to plug : 320 mm

Other Specifications:

• Number of wires : 6
• Number of plugs : 1
• Number of pins : 6
• Number of poles : 4
• Pickup : White/Blue to White/Red = 285 ohms ±20%
• Source #1 : Green/White to Green = 54 ohms ±20%
• Source #2 : Black/Red to Black = 875 ohms ±20%
