Specifically designed for the BMW F800 / F700GS / F650 (2008+ 2 Cylinder)

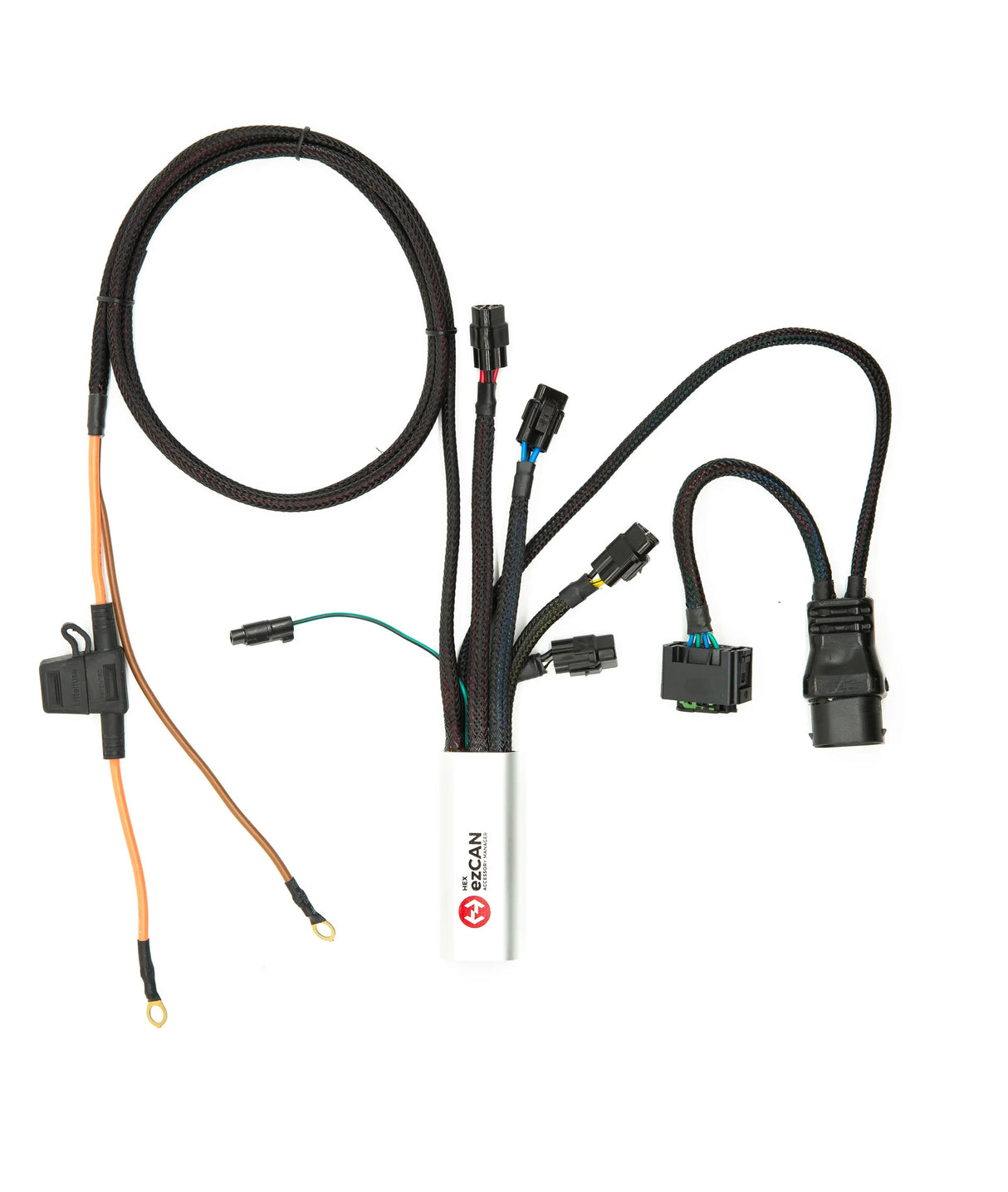

From HEX Microsystems, the developers of the GS-911 Diagnostic Tool, comes the HEX ezCAN.
A one switch solution that lets you add and configure accessories with ease and without cutting any wires. It's simple and easy to fit additional lights, an air horn, accessories and emergency brake lights that make the bike safer to ride.
*This model is designed for the F800/F700GS/F650-2008+ series.
Key features
Waterproof and dustproof
One switch manages everything
Integrates additional safety features
Does not void warranty
Plugs directly into CAN-Bus (saves time)
Unobtrusive - fits perfectly under the seat
Easy configuration of software via USB (Windows PC and MAC)
Four individually fused channels
Specifications and components
Waterproof micro USB connector
Battery connection and fuse
Two CAN-Bus connectors
Two high-power outputs (10A continuous / 25A, max 20 seconds)
Two low-power outputs (4A continuous)
Product size 55 x 30 x 16mm (2,2 x 1,2 x 0,6")
Easy installation
Step 1: Download and install the HEX ezCAN software (Available HERE)
Step 2: Install the ezCAN under the seat (Velcro included)
Step 3: Route and connect the ezCAN battery cables
Step 4: Plug the ezCAN into the motorcycle CAN-Bus
Step 5: Plug accessories into the ezCAN
Step 6: Use the software to configure the ezCAN via USB (Windows PC or MAC)
Use Channel Mapping to select your preferred configuration. The Configuration window then lets you customize the behaviour of your accessories according to CAN-Bus inputs, for example setting up an emergency brake light to flash when the ezCAN detects harsh deceleration or the LEDs to flash when the air horn is activated. Accessory/Ignition supply can be set to remain on for a specific time after the ignition is turned off.
Contents of package
HEX ezCAN device
Micro USB cable
Two Velcro strips
Four cable ties
Four stub connectors
Two blank connectors
