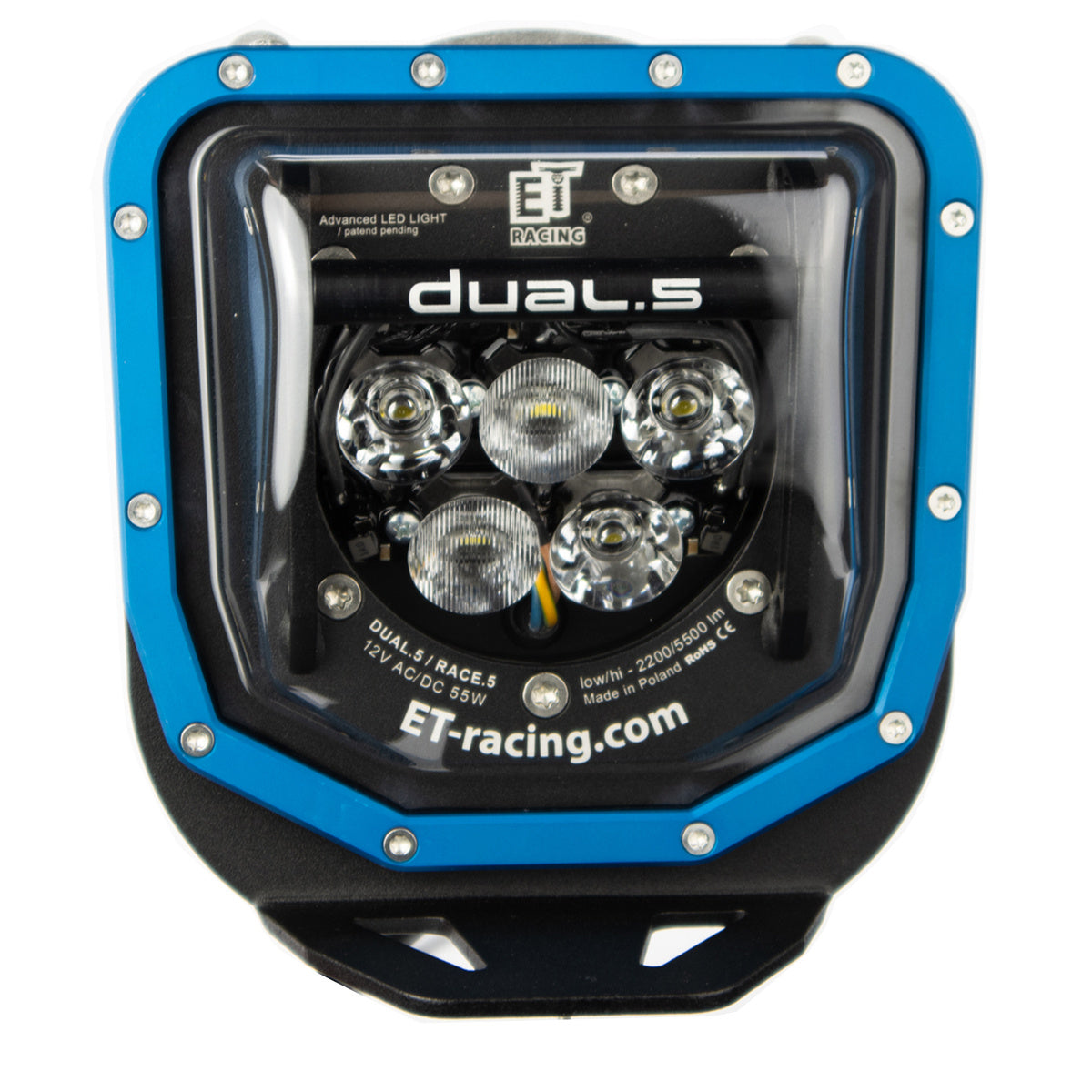

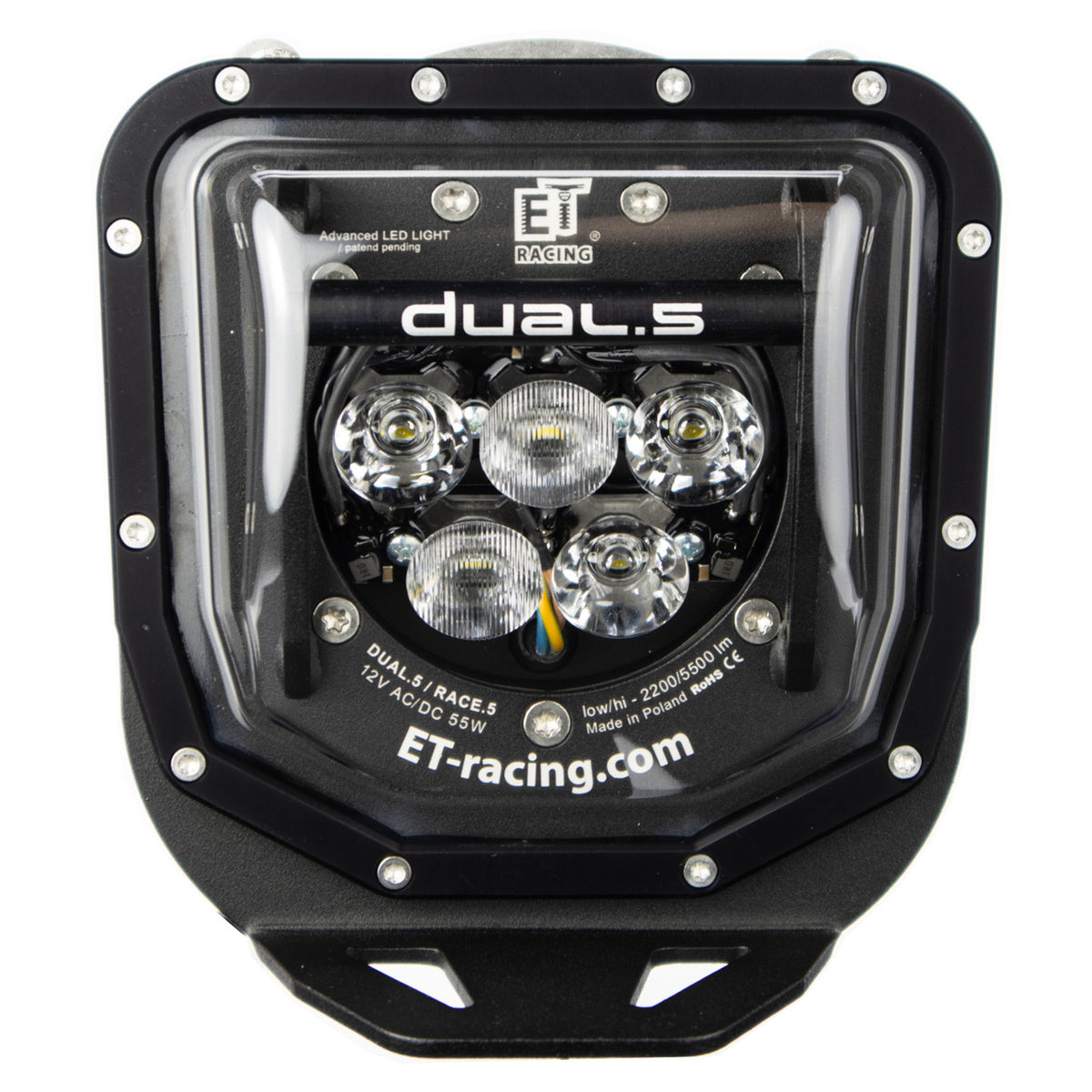

Dual.5  Headlight for Husqvarna TE 150-300 2016-2018 Carburetor
Dual.5  Headlight for Husqvarna TE 150-300 2016-2018 Carburetor
Dual.5  Headlight for Husqvarna TE 150-300 2016-2018 Carburetor
Dual.5  Headlight for Husqvarna TE 150-300 2016-2018 Carburetor
Dual.5  Headlight for Husqvarna TE 150-300 2016-2018 Carburetor

Dual.5 Headlight for Husqvarna TE 150-300 2016-2018 Carburetor

Regular price
$689.95
Regular price
Sale price
$689.95
Unit price
per
Availability
Sold out
Tax included. Shipping calculated at checkout.

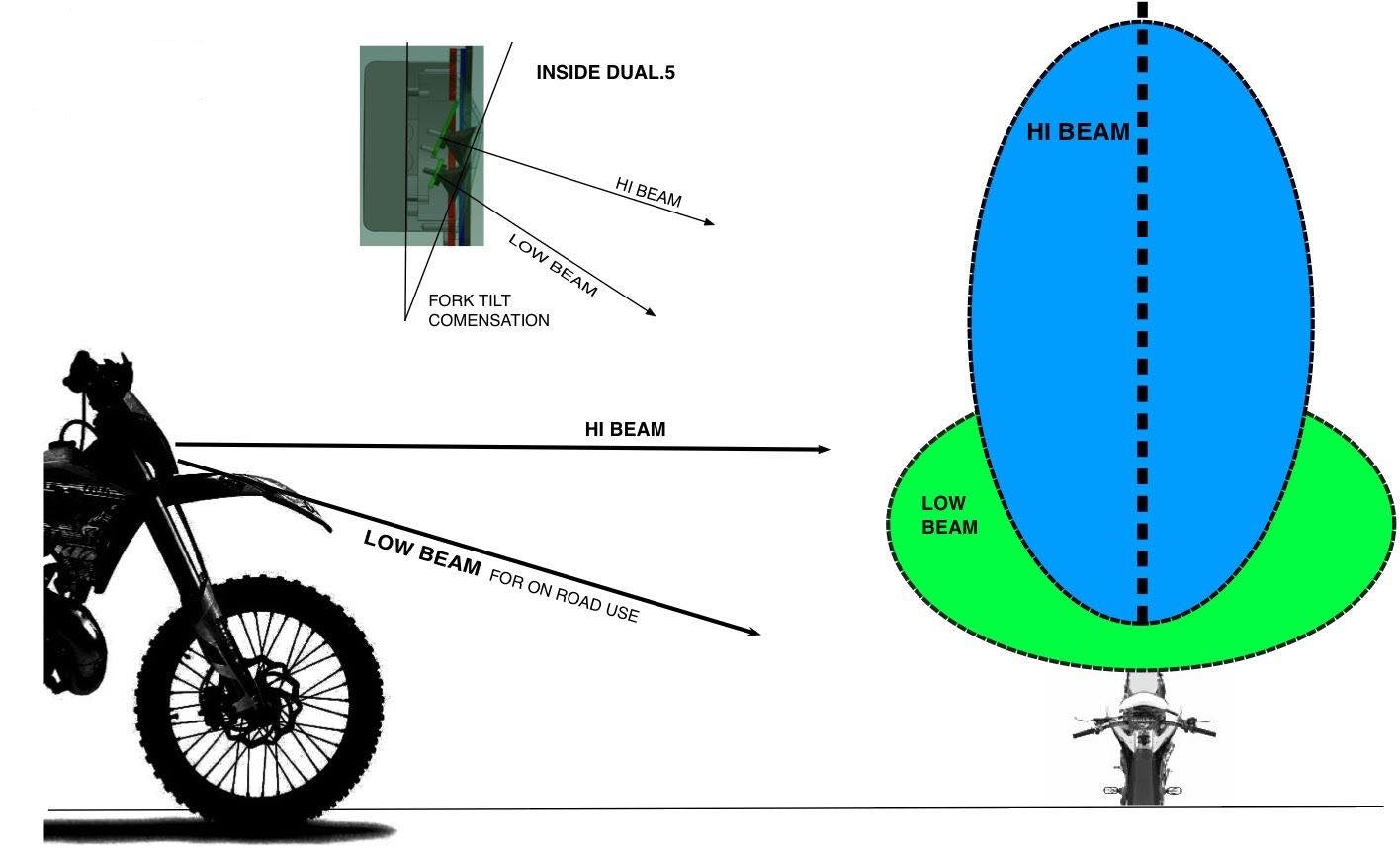

The DUAL.5 has the ability to generate two beams of light with different incidence angles simultaneously from one lamp. Thanks to this solution, it gets diffused light (FLOOD) in LOW mode and long-range light (SPOT) in HI mode from one DUAL.5 reflector. Thanks to appropriately selected angles of incidence of light, the DUAL.5 in the Low beam mode generates a powerful 2200 lm  and 22W creating an incredible light that illuminates the corners and allows driving in fog, while not dazzling oncoming vehicles. High beam mode - 5500 lm 44W supports the road lights of the motorcycle by letting you see far ahead of the vehicle and simultaneously illuminating the bends.

Our Dual.5 is supplied with an AC/DC converter with overvoltage protections, so power can be taken from the lighting circuit on carburated models.



Technical Specifications:

 Specifically designed for Carburetor models.

• LED type: 5x CREE® XLAMP® XP-L

• High luminous flux 2200lm / 5500lm

• White color temperature: 5000K (daylight white)

• Supply voltage: direct / DC 12V ÷ 25V

• Power consumption:

Low beam lights - type. 1.59 A @ 13.8VDC - max. 1.82 A @ 12VDC

Hi beam lights (1) - type. 3.18 A @ 13.8VDC - max. 3.64 A @ 12VDC

• Maximum power consumption: 48.8 Watts @ 12VDC

• Luminous efficacy min. 110lm / W

• Integrated protections: - diode thermal stabilization (TJ LED = 85 ÷ 95 ° C) - thermal (SHDN> 140 ° C with a hysteresis of 25 ° C)

• High-quality aluminum MCPCB substrate: - 3W / mK ceramic dielectric - gold plating

• Working temperature: -40 ÷ 65 ° C

• Made in environmentally friendly technology (RoHS 2002/95 / WE)

24 months warranty



TESTED IN THE MOST HARDEST CONDITIONS

Enduro-Tech lamps prove themselves wherever powerful and reliable lighting is needed in a compact and very resistant housing.



GREATER SECURITY

DUAL.5 is not only increase your visibility at night, it also ensures that you are been seen during the day. This significantly increase safety in road traffic.





ROBUST MODULAR CONSTRUCTION

The lamp housing is made of PA-6 aluminum alloy. Thanks to this, the headlights are very resistant to damage and are perfect for hard conditions. The modular structure and advanced mounting system allow for easy assembly and adjustment.



WATERPROOF HOUSING The design of the lamps and the use of appropriate sealing systems guarantee maximum tightness.



INTERCHANGEABLE FAST The lenses are easy to replace on all models. They are available in special sets.





Some of US (or other countries outside the EU) versions of KTM, Husqvarna or Gas Gas have only LOW beam and an ON/OFF switch because in the United States (and other countries outside the EU) there is no obligation to have the LOW and HIGH beam mode as it is in the EU.



If you want to use our Dual.5 on LOW beam, HIGH beam or turn the lamp OFF, you need our HIGH/LOW switch.

Our HIGH/LOW switch allows you to restore HIGH/LOW mode function of your motorcycle.



Motorcycle specifications may differ from country to country, so check that your bike has a three-way switch - off / low / high. If your bike has such a switch, you do not need our switch.

If you are not sure, feel free to contact us.
