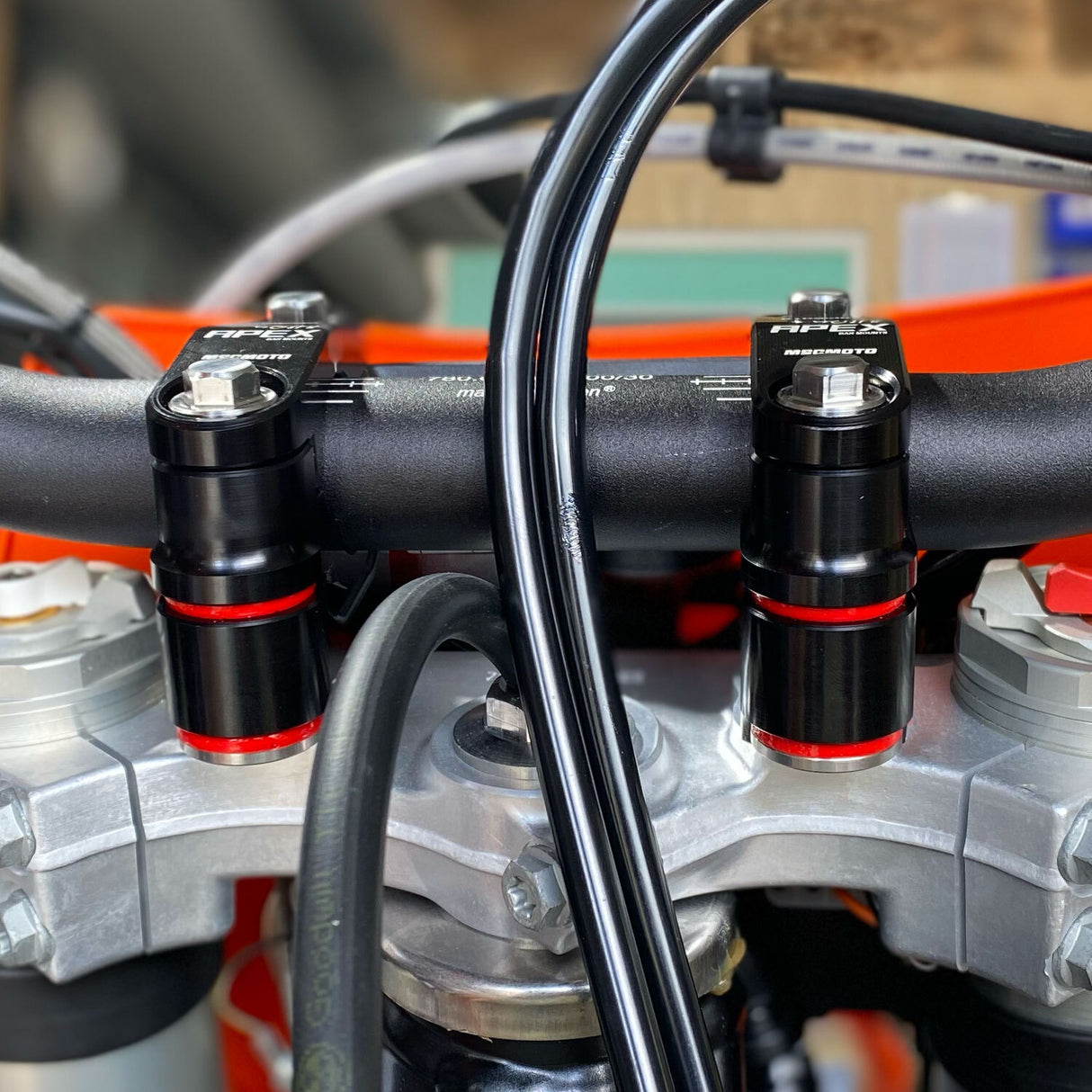

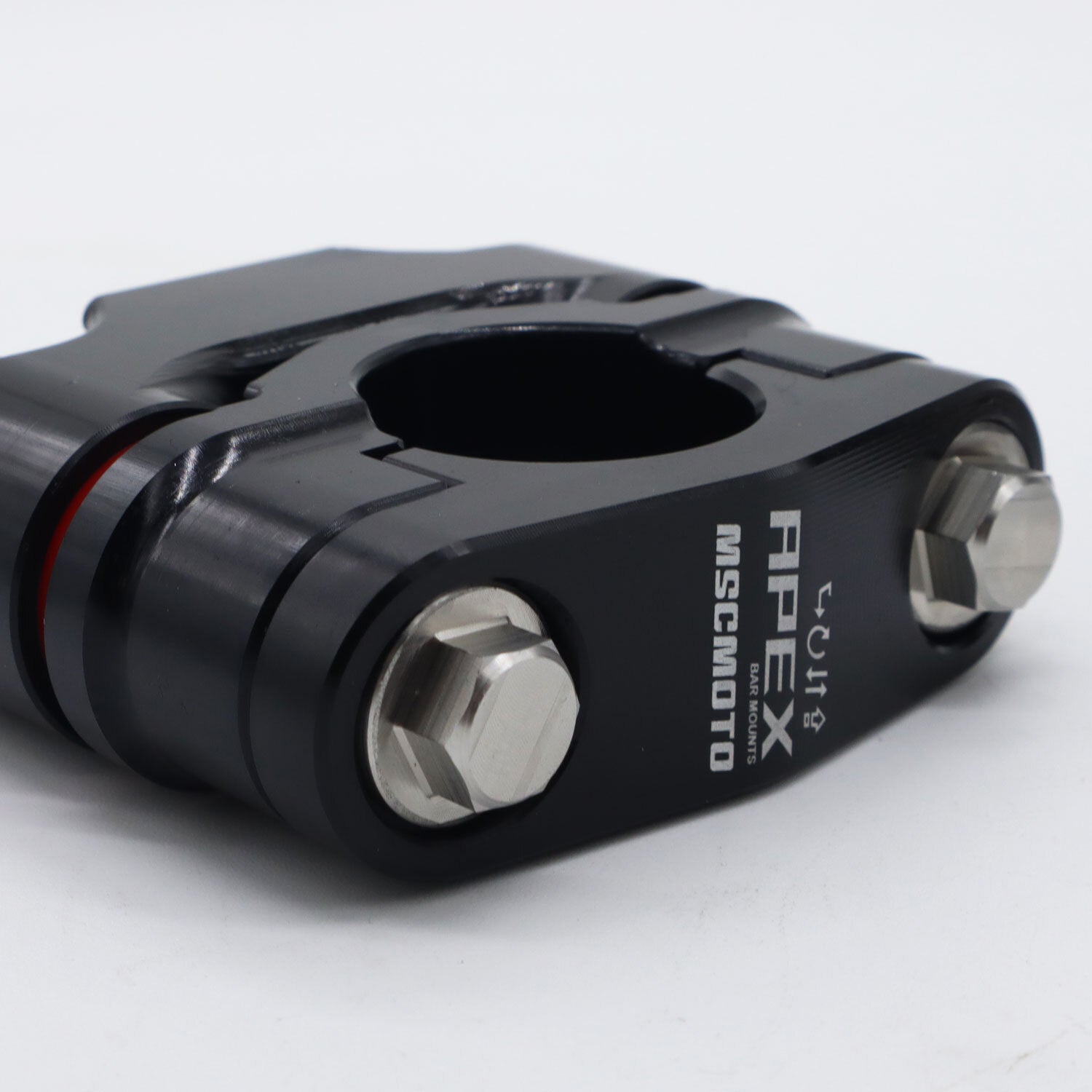

Apex Anti Vibration Bar Mounts Black for KTM 790/890/1090/1190/1290

The APEX bar mount system is the perfect answer to reducing handlebar vibrations and damping out harsh impacts coming through your hands.

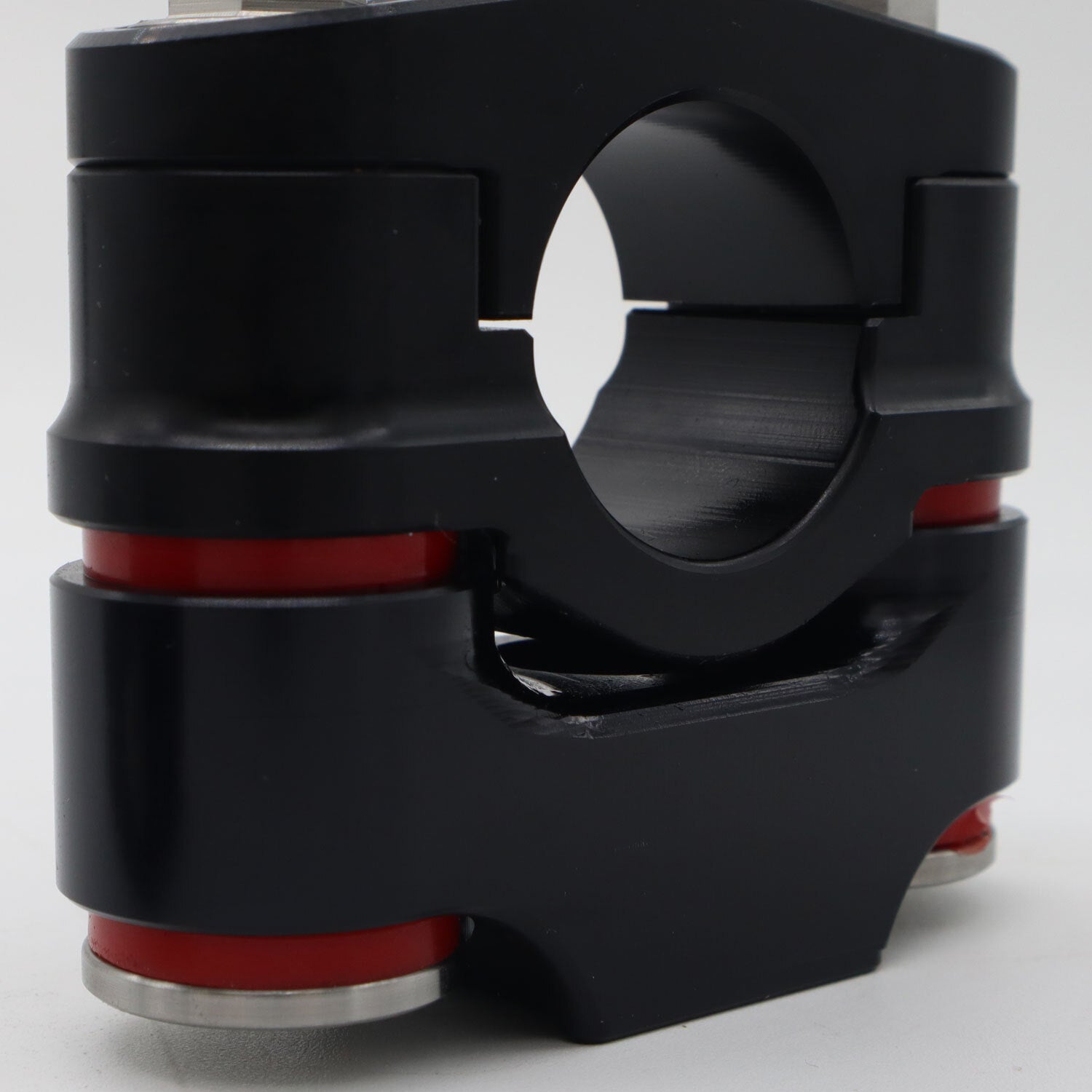

Our system is unique in the way it uses 4 FULLY damped points on both the upper and lower of the contact point. Other systems use only dampers on one side which is not fully damping the vibrations like a traditional "rubber mounted bar system' on some OEM bikes. The APEX bar clamps use 8 damper cones made from cast polyurethane which offers superior reliability over natural rubber while keeping effective damping characteristics.

APEX is 100% made in Australia by MSC MOTO Including casting the polyurethane damper cones and all CNC machining work.

Suitable for bikes with a rigid mounted handlebar as standard with a M10 fixing bolt.

Bar height is only increased by 5mm and less in some cases. The overall diamentions are more compact than other damped handlebar systems allowing for accessories and steering dampers/stabilisers to be mounted to the handlebars more easily.

*Allow 2 weeks lead time to process the order of this product.

FEATURES

100% Australian made with CNC machined Billet aluminium
Lightweight without sacrificing strength (503g)
Polyurethane resign dampers prevent twisting and reduce vibration
Softer damper Options available
Mount height - 40mm to centre of handlebar
Hardware - All stainless steel fasteners

FITMENT

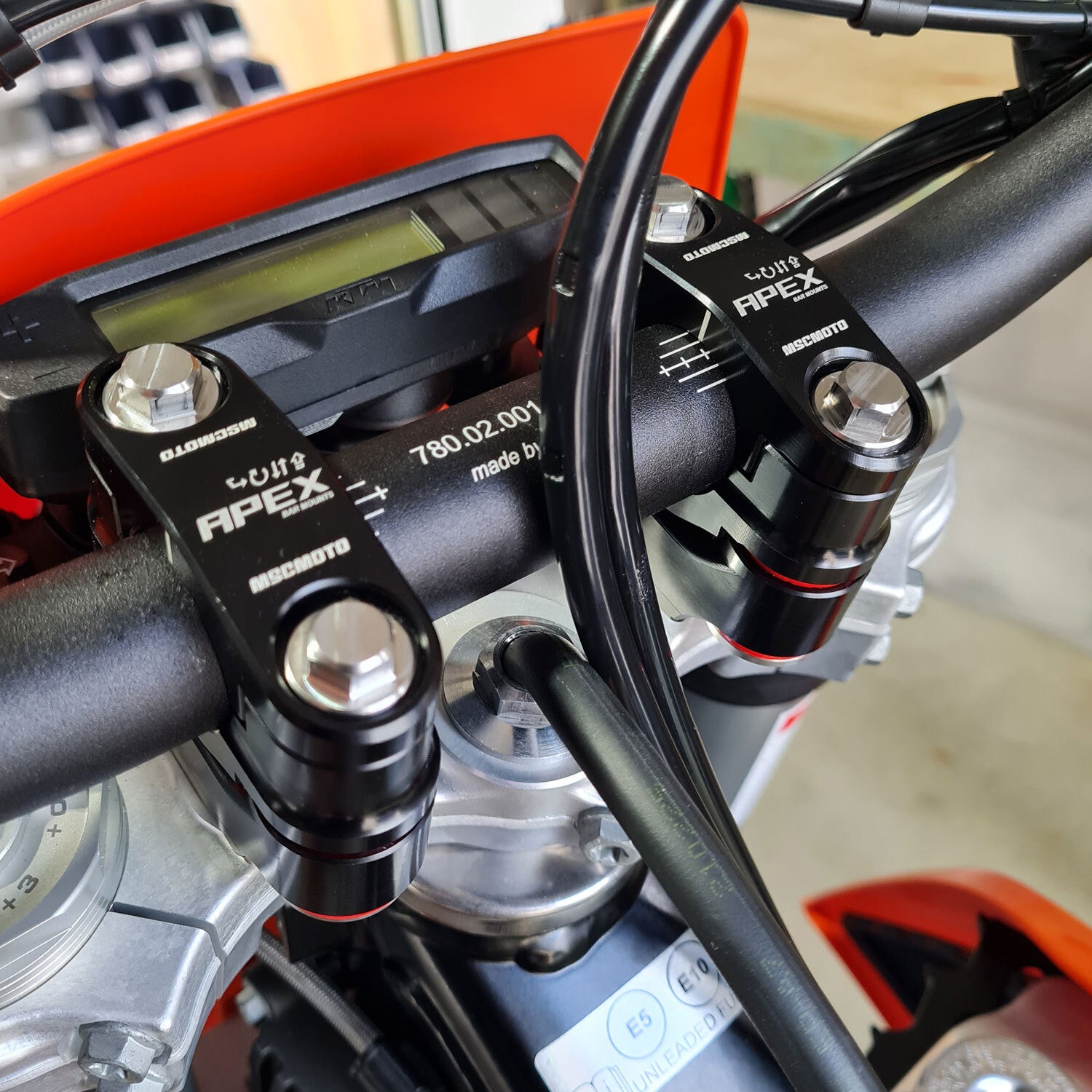

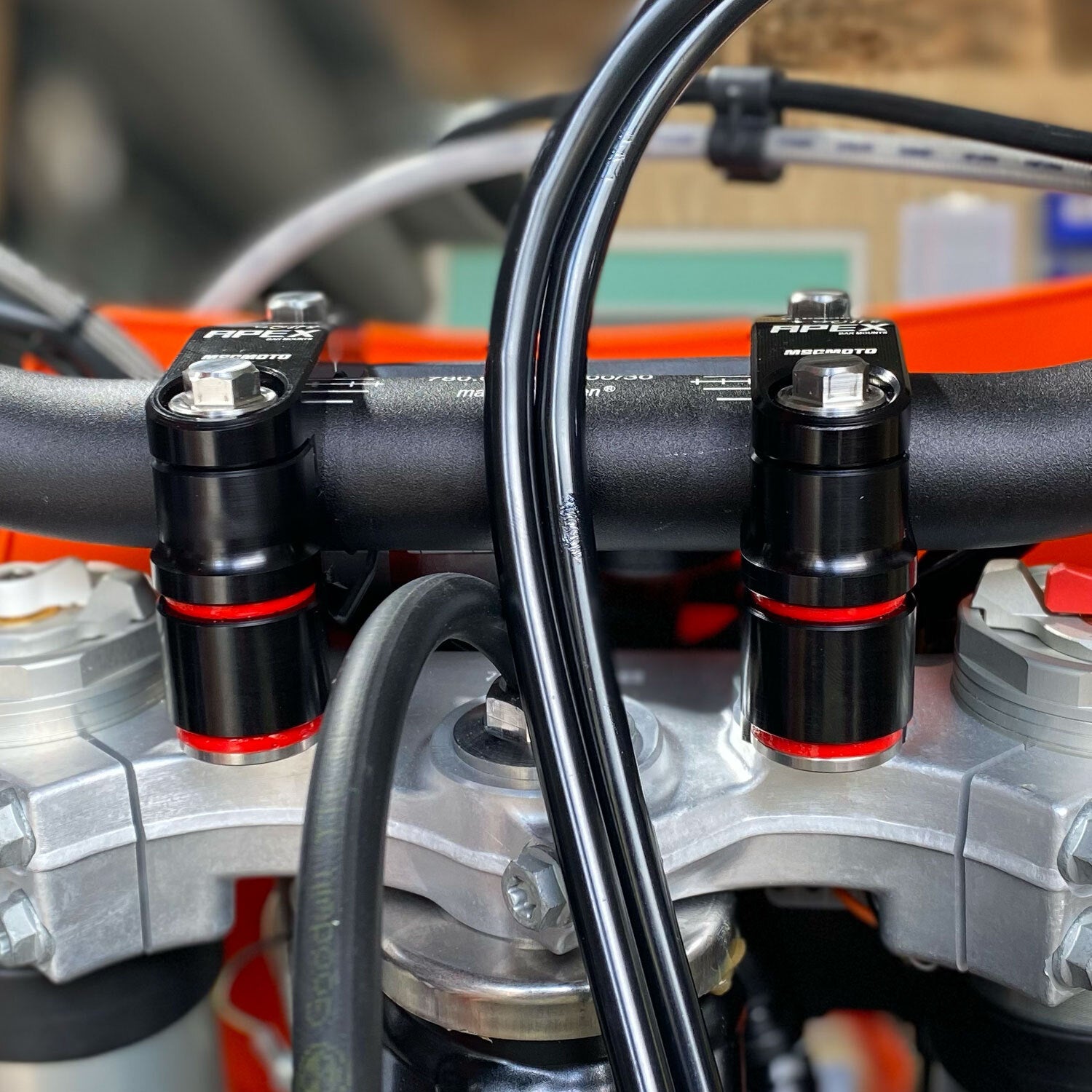

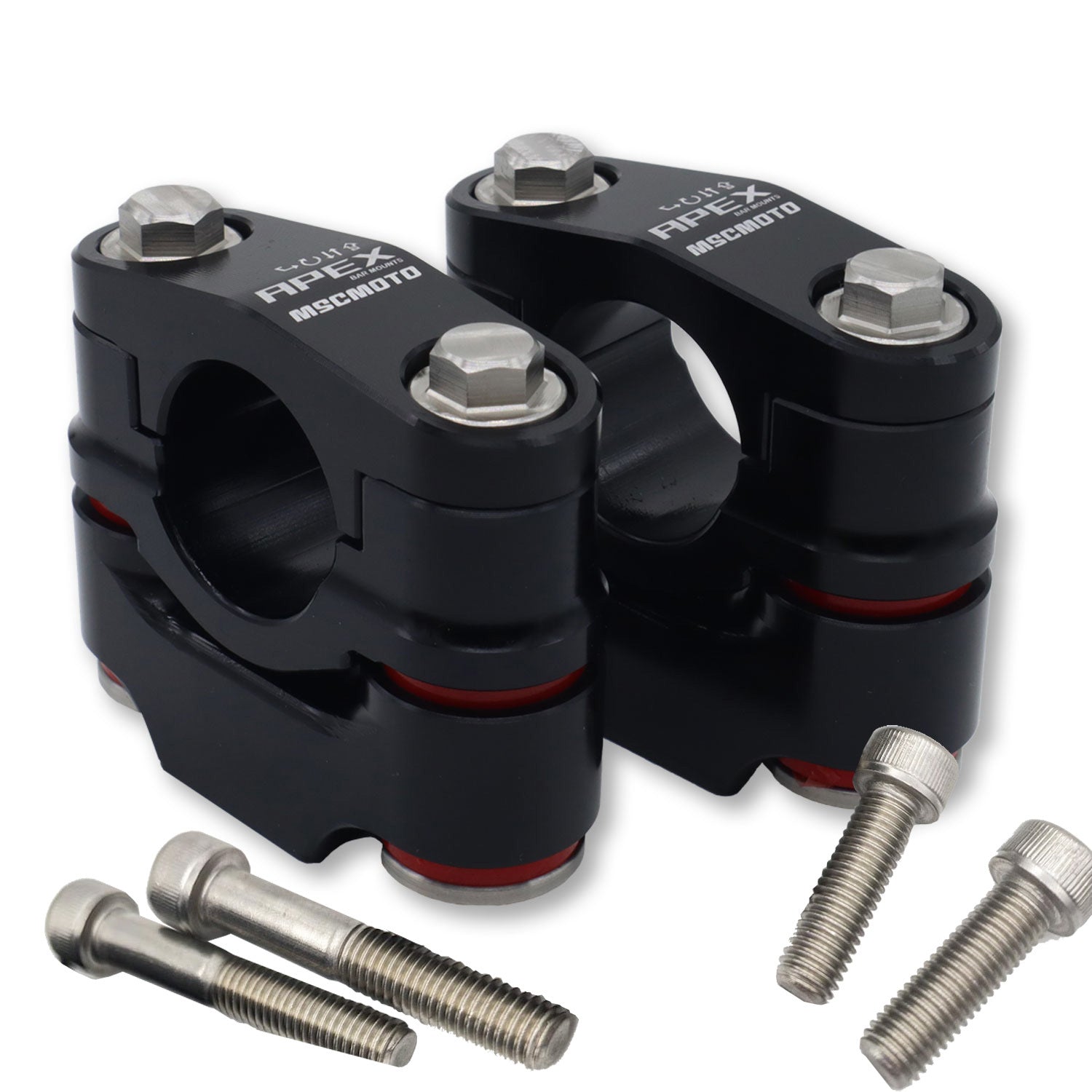

Complete set of APEX bar mounts for KTM 790/890/1090/1190/1290 adventure models with rigid mount M10 top triple clamp. Kit includes both sets of bolts for mounting with or without a RM3 steering damper kit

KTM 790/890/1090/1190/1290 Adventure / Super Duke
